Two-temperature aluminium: Johnson et al. (2025)

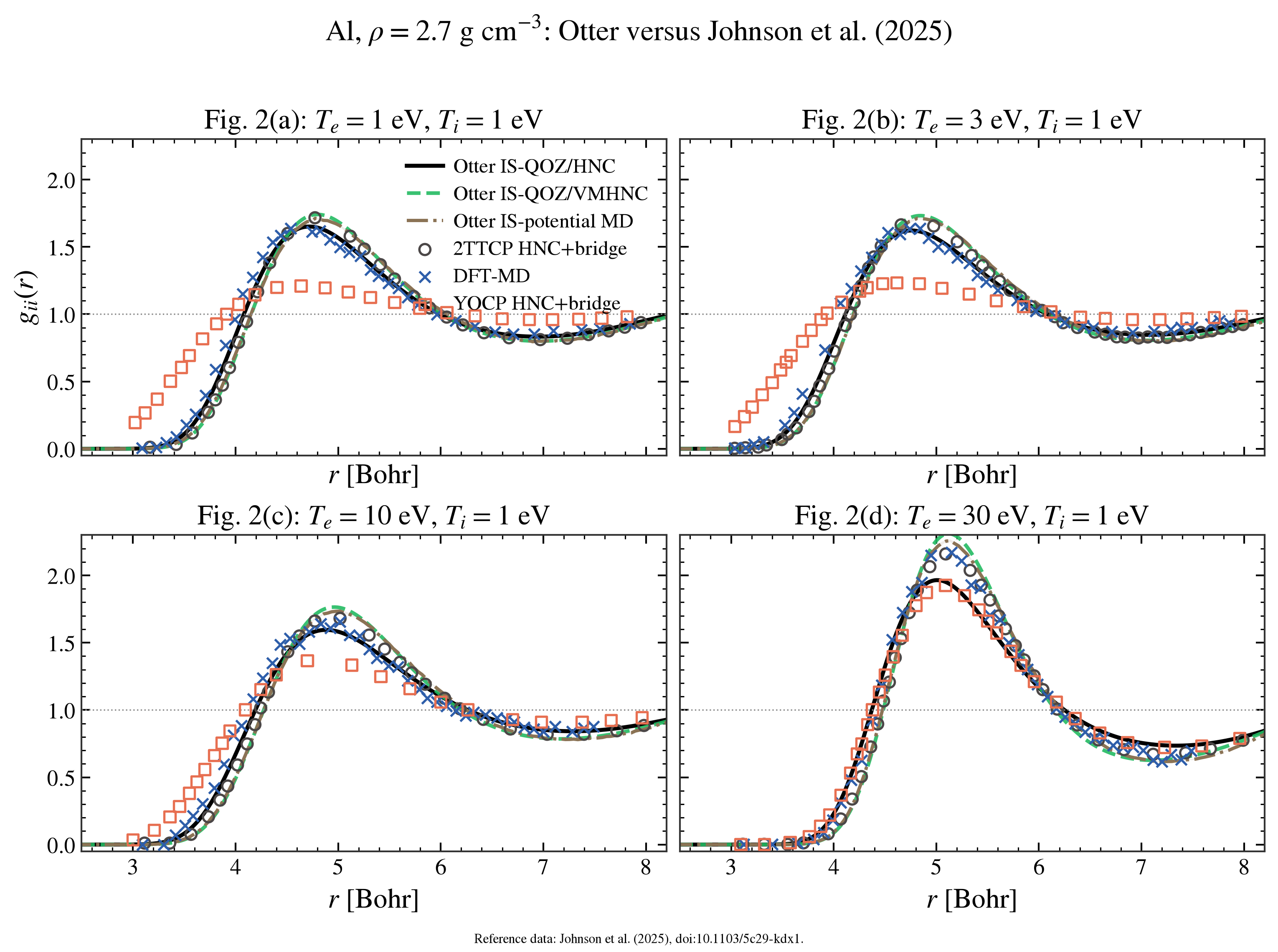

This benchmark compares Otter IS-QOZ \(g_{ii}(r)\) obtained with ordinary HNC and Rosenfeld–Ashcroft VMHNC closures with the three reference curve families in Fig. 2(a)–2(d) of Johnson et al. [2025]. The states are aluminium at \(\rho=2.7\) g cm-3, \(T_i=1\) eV, and \(T_e=1,3,10,30\) eV. The paper labels the reference methods as 2TTCP HNC+bridge, DFT-MD, and YOCP HNC+bridge. In every panel, the two Otter integral-equation curves reuse exactly the same ion- sphere (IS) electronic result and effective ion–ion potential; only the ionic closure changes. Classical LAMMPS MD [Thompson et al., 2022] with that same potential is also shown, so closure error can be separated from pseudoatom pair-potential error.
The VMHNC bridge is the Percus–Yevick hard-sphere bridge with its packing fraction fixed by the variational condition of Faussurier [2004], not by fitting these DFT-MD curves. The comparison therefore tests a predictive closure rather than a calibrated overlay.
At low electron temperature, a spherical pseudoatom/average-atom construction cannot represent directional chemical bonding or transient molecular structure. A bridge function improves the classical ionic closure, but it cannot restore electronic or chemical structure absent from the pseudoatom pair potential. Low-temperature disagreement is consequently not, by itself, evidence that the bridge implementation is wrong.
Several similarly named models must not be conflated. OCP denotes bare Coulomb ions in a uniform neutralizing background; YOCP denotes a screened Yukawa interaction. IEMHNC maps the simulation-derived OCP bridge of Iyetomi et al. [1992] to a YOCP state along an isomorph [Tolias and Lucco Castello, 2019]. The earlier Otter panel-(d) study first fitted the non-Yukawa QOZ potential at long wavelength to an effective YOCP; it is therefore an IEMHNC-inspired diagnostic mapping, not a general IEMHNC closure for arbitrary QOZ potentials. Johnson’s plotted YOCP curve instead cites the earlier empirical Yukawa bridge of Daughton et al. [2000]. Neither is Otter’s hard-sphere VMHNC.
The reference abscissa is \(r\) in atomic units (Bohr), as shown on the published Fig. 2 axis. No coordinate conversion is applied.
Edit only the input block below. USE_PRECOMPUTED_DATA = True verifies
the dedicated accepted-baseline manifest and every NPZ checksum. With
False, this same file calls the public Otter workflow, writes candidate
results under benchmarks/outputs, and plots them.
USE_RECOMPUTED_CANDIDATES = True loads those still-unreviewed candidates
with their separate manifest and checksums for local review; it never promotes
or overwrites an accepted baseline.
When recomputing, RUN_SAME_POTENTIAL_MD = True follows Johnson’s stated
dimensionless protocol: 2048 ions, \(\Delta t=0.005\omega_p^{-1}\);
\(50\omega_p^{-1}\) NVT equilibration followed by
\(500\omega_p^{-1}\) NVE production. It requires lmp and mpirun.
The project maintainer digitized the publication curves from Fig. 2(a)–2(d).
They are distributed with article/panel attribution and license status
NOASSERTION.
See the provenance and reuse notice.
from __future__ import annotations
from concurrent.futures import ProcessPoolExecutor, as_completed
import hashlib
import json
import os
from pathlib import Path
import shutil
import subprocess
import time
from typing import Any
import matplotlib.pyplot as plt
import numpy as np
from scipy.constants import physical_constants
from otter import (
PlasmaWorkflowConfig,
continue_plasma_workflow_from_electronic_result,
solve_plasma_workflow,
)
from otter.plotting import grid_figsize, save_figure, set_style
# =============================================================================
# User input
# =============================================================================
USE_PRECOMPUTED_DATA = True
if os.environ.get("OTTER_RECOMPUTE_JOHNSON_AL", "0") == "1":
USE_PRECOMPUTED_DATA = False
USE_RECOMPUTED_CANDIDATES = False
if os.environ.get("OTTER_USE_JOHNSON_CANDIDATES", "0") == "1":
USE_RECOMPUTED_CANDIDATES = True
# A fresh benchmark recomputation also performs classical MD with the same
# Otter IS-QOZ pair potential. Set this to False only when LAMMPS is absent.
RUN_SAME_POTENTIAL_MD = True
LAMMPS_EXECUTABLE = "lmp"
MPI_LAUNCHER = "mpirun"
MPI_PROCESSES_PER_MD_STATE = 10
MAX_PARALLEL_MD_STATES = 2
MD_CELLS_PER_AXIS = 8 # FCC: 4 * 8^3 = 2048 Al ions.
MD_TIMESTEP_OMEGA_P_INV = 5.0e-3
MD_EQUILIBRATION_OMEGA_P_INV = 50.0
MD_PRODUCTION_OMEGA_P_INV = 500.0
MD_RDF_BINS = 500
# Two states run concurrently; each AA solve parallelizes its continuum channels.
MAX_STATE_WORKERS = 2
CONTINUUM_WORKERS_PER_STATE = 6
QOZ_N_POINTS = 4096
LFC_MODEL = "chabrier1990"
HNC_TOL = 1.0e-4
HNC_CLOSURE_TOL = 2.5e-3
VMHNC_ETA_TOL = 1.0e-6
R_RETAIN_MAX_BOHR = 20.0
K_RETAIN_MAX_BOHR_INV = 20.0
# =============================================================================
BENCHMARK_ID = "johnson_et_al_2025_two_temperature_al"
STATES: tuple[dict[str, Any], ...] = (
{
"state_id": "al_rho2p7_te1_ti1",
"te_ev": 1.0,
"panel": "Fig. 2(a)",
},
{
"state_id": "al_rho2p7_te3_ti1",
"te_ev": 3.0,
"panel": "Fig. 2(b)",
},
{
"state_id": "al_rho2p7_te10_ti1",
"te_ev": 10.0,
"panel": "Fig. 2(c)",
},
{
"state_id": "al_rho2p7_te30_ti1",
"te_ev": 30.0,
"panel": "Fig. 2(d)",
},
)
REFERENCE_METHODS: tuple[tuple[str, str, str], ...] = (
("AA", "2TTCP HNC+bridge", "o"),
("DFTMD", "DFT-MD", "x"),
("YOCP", "YOCP HNC+bridge", "s"),
)
def repository_root() -> Path:
"""Locate the checkout when run directly or through Sphinx-Gallery."""
candidates = [Path.cwd().resolve(), *Path.cwd().resolve().parents]
source_file = globals().get("__file__")
if source_file is not None:
source = Path(str(source_file)).resolve()
candidates.extend([source.parent, *source.parents])
for candidate in candidates:
manifest = (
candidate
/ "benchmarks"
/ "baselines"
/ BENCHMARK_ID
/ "manifest.json"
)
if manifest.is_file():
return candidate
raise FileNotFoundError("Cannot locate the Otter checkout.")
ROOT = repository_root()
BASELINE_DIR = ROOT / "benchmarks" / "baselines" / BENCHMARK_ID
REFERENCE_DIR = ROOT / "benchmarks" / "reference_data" / BENCHMARK_ID
OUTPUT_DIR = ROOT / "benchmarks" / "outputs" / BENCHMARK_ID
CANDIDATE_DIR = OUTPUT_DIR / "gallery_recomputed"
FIGURE_DIR = OUTPUT_DIR / "figures"
SCRIPT_PATH = ROOT / "benchmarks" / "examples" / Path(
"plot_johnson_et_al_2025_two_temperature_al.py"
)
def sha256_file(path: Path) -> str:
"""Return a streaming SHA-256 digest."""
digest = hashlib.sha256()
with path.open("rb") as stream:
for block in iter(lambda: stream.read(1024 * 1024), b""):
digest.update(block)
return digest.hexdigest()
def load_npz(path: Path) -> dict[str, np.ndarray]:
"""Load only portable numeric/string arrays."""
with np.load(path, allow_pickle=False) as archive:
result = {key: np.asarray(archive[key]) for key in archive.files}
if any(value.dtype.hasobject for value in result.values()):
raise TypeError(f"Object arrays are forbidden in {path}.")
return result
def load_precomputed_states() -> dict[str, dict[str, np.ndarray]]:
"""Load all and only accepted, checksummed dedicated baselines."""
manifest = json.loads(
(BASELINE_DIR / "manifest.json").read_text(encoding="utf-8")
)
if manifest.get("benchmark_id") != BENCHMARK_ID:
raise ValueError("Unexpected baseline manifest.")
expected_ids = {str(state["state_id"]) for state in STATES}
records = {
str(record["state_id"]): record for record in manifest["states"]
}
if not records or not set(records).issubset(expected_ids):
raise RuntimeError("Baseline manifest state coverage is invalid.")
terminal_statuses = {"accepted", "reference_only_strict_hnc_rejected"}
unresolved = {
state_id: str(record.get("status"))
for state_id, record in records.items()
if record.get("status") not in terminal_statuses
}
if unresolved:
detail = ", ".join(
f"{state_id}={status}"
for state_id, status in sorted(unresolved.items())
)
raise RuntimeError(
"The dedicated benchmark manifest still contains unreviewed "
f"states ({detail}). Set USE_PRECOMPUTED_DATA = False to "
"calculate candidates directly; review them before promotion."
)
loaded: dict[str, dict[str, np.ndarray]] = {}
for state_id, record in records.items():
if record["status"] == "reference_only_strict_hnc_rejected":
if record.get("baseline_file") is not None:
raise RuntimeError(
f"Rejected state {state_id} must not name a baseline."
)
continue
filename = record.get("baseline_file")
expected_hash = record.get("baseline_sha256")
if not filename or not expected_hash:
raise RuntimeError(f"Accepted record {state_id} is incomplete.")
path = BASELINE_DIR / str(filename)
if sha256_file(path) != str(expected_hash):
raise RuntimeError(f"Checksum mismatch for {path}.")
payload = load_npz(path)
if str(payload["state_id"].item()) != state_id:
raise ValueError(f"State identifier mismatch in {path}.")
loaded[state_id] = payload
missing = expected_ids - set(records)
if missing:
print(
"Accepted baseline does not yet contain: "
+ ", ".join(sorted(missing))
)
return loaded
def load_recomputed_candidates() -> dict[str, dict[str, np.ndarray]]:
"""Load a complete candidate set without treating it as accepted data."""
manifest = json.loads(
(CANDIDATE_DIR / "candidate_manifest.json").read_text(encoding="utf-8")
)
if manifest.get("benchmark_id") != BENCHMARK_ID:
raise ValueError("Unexpected candidate manifest.")
records = {
str(record["state_id"]): record for record in manifest["states"]
}
expected_ids = {str(state["state_id"]) for state in STATES}
if set(records) != expected_ids:
raise RuntimeError("Candidate manifest does not cover all four states.")
loaded: dict[str, dict[str, np.ndarray]] = {}
for state_id, record in records.items():
if record.get("status") != "candidate_unreviewed":
raise RuntimeError(
f"Candidate {state_id} is not reviewable: {record.get('status')}."
)
path = CANDIDATE_DIR / str(record["baseline_file"])
if sha256_file(path) != str(record["baseline_sha256"]):
raise RuntimeError(f"Candidate checksum mismatch for {path}.")
loaded[state_id] = load_npz(path)
return loaded
def workflow_config(
state: dict[str, Any],
*,
bridge_model: str = "none",
) -> PlasmaWorkflowConfig:
"""Build one IS workflow; only ``bridge_model`` changes between curves."""
aa_overrides: dict[str, Any] = {
"cont_n_jobs": int(CONTINUUM_WORKERS_PER_STATE),
"cont_shards": int(2 * CONTINUUM_WORKERS_PER_STATE),
}
return PlasmaWorkflowConfig(
elements=["Al"],
temperature_ev=float(state["te_ev"]),
ion_temperature_ev=1.0,
rho_g_cc=2.7,
aa_overrides=aa_overrides,
hnc_tol=float(HNC_TOL),
hnc_closure_transform_tol=float(HNC_CLOSURE_TOL),
hnc_max_iter=500,
hnc_bridge_model=str(bridge_model),
vmhnc_eta_tol=float(VMHNC_ETA_TOL),
show_progress=False,
verbose=False,
)
def _pack_structure_result(
workflow: dict[str, Any],
) -> dict[str, np.ndarray]:
"""Validate and retain one IS electronic/QOZ structure."""
electronic = dict(workflow["electronic"]["result"])
ion = dict(workflow["ion"])
if electronic.get("stage2_converged") is not True:
raise RuntimeError("Full average-atom stage 2 did not converge.")
if dict(electronic.get("ext_status", {})).get("converged") is not True:
raise RuntimeError("External fixed-mu average atom did not converge.")
if str(electronic.get("threshold_state_status", "")).lower() == "unresolved":
raise RuntimeError("The threshold-state representation is unresolved.")
if ion.get("hnc_converged") is not True:
raise RuntimeError("HNC did not reach a physical fixed point.")
if float(ion["hnc_output_residual"]) > HNC_TOL:
raise RuntimeError("HNC residual exceeds the configured tolerance.")
if float(ion["closure_transform_max_abs"]) > HNC_CLOSURE_TOL:
raise RuntimeError("The g/S transform-closure audit failed.")
r = np.asarray(ion["r"], dtype=float)
k = np.asarray(ion["k"], dtype=float)
r_electronic = np.asarray(electronic["r"], dtype=float)
r_mask = r <= R_RETAIN_MAX_BOHR
k_mask = k <= K_RETAIN_MAX_BOHR_INV
return {
"r_bohr": r[r_mask],
"gii_r": np.asarray(ion["gii_r"], dtype=float)[r_mask],
"vii_r_ha": np.asarray(ion["vii_r"], dtype=float)[r_mask],
"k_bohr_inv": k[k_mask],
"sii_k": np.asarray(ion["sii_k"], dtype=float)[k_mask],
"ion_density_bohr3": np.asarray(float(ion["n_i"])),
"mu_ha": np.asarray(float(electronic["mu"])),
"r_ws_bohr": np.asarray(float(electronic["r_ws"])),
"zbar_partition": np.asarray(float(ion["zbar_partition"])),
"bound_charge": np.asarray(
4.0
* np.pi
* np.trapezoid(
np.asarray(electronic["n_bound"], dtype=float)
* r_electronic**2,
r_electronic,
)
),
"hnc_solver_path": np.asarray(str(ion["hnc_solver_path"])),
"hnc_fallback_used": np.asarray(bool(ion["hnc_fallback_used"])),
"hnc_primary_best_residual": np.asarray(
float(ion["hnc_primary_best_residual"])
),
"hnc_best_residual": np.asarray(float(ion["hnc_output_residual"])),
"hnc_s_min": np.asarray(float(ion["hnc_s_min"])),
"hnc_closure_mismatch": np.asarray(
float(ion["closure_transform_max_abs"])
),
"hnc_bridge_model": np.asarray(str(ion["hnc_bridge_model"])),
}
def pack_result(
hnc_workflow: dict[str, Any],
vmhnc_workflow: dict[str, Any],
state: dict[str, Any],
hnc_elapsed_s: float,
vmhnc_elapsed_s: float,
) -> dict[str, np.ndarray]:
"""Store paired HNC/VMHNC closures from one IS electronic result."""
hnc = _pack_structure_result(hnc_workflow)
vmhnc = _pack_structure_result(vmhnc_workflow)
vmhnc_ion = dict(vmhnc_workflow["ion"])
if str(hnc["hnc_bridge_model"].item()) != "none":
raise RuntimeError("The ordinary-HNC curve unexpectedly used a bridge.")
if str(vmhnc["hnc_bridge_model"].item()) != "rosenfeld_ashcroft":
raise RuntimeError("The VMHNC curve did not use Rosenfeld--Ashcroft.")
if not np.isclose(
float(hnc["mu_ha"]),
float(vmhnc["mu_ha"]),
rtol=0.0,
atol=1.0e-12,
):
raise RuntimeError("HNC and VMHNC did not reuse the same IS electronic state.")
payload = {
"schema_version": np.asarray("otter_johnson_2025_al_v3"),
"state_id": np.asarray(str(state["state_id"])),
"rho_g_cc": np.asarray(2.7),
"te_ev": np.asarray(float(state["te_ev"])),
"ti_ev": np.asarray(1.0),
"paper_panel": np.asarray(str(state["panel"])),
"structure_model": np.asarray("IS"),
"producer_elapsed_s": np.asarray(
float(hnc_elapsed_s + vmhnc_elapsed_s)
),
"hnc_elapsed_s": np.asarray(float(hnc_elapsed_s)),
"vmhnc_elapsed_s": np.asarray(float(vmhnc_elapsed_s)),
**hnc,
**{
f"vmhnc_{key}": value
for key, value in vmhnc.items()
if key
in {
"r_bohr",
"gii_r",
"k_bohr_inv",
"sii_k",
"hnc_solver_path",
"hnc_fallback_used",
"hnc_primary_best_residual",
"hnc_best_residual",
"hnc_s_min",
"hnc_closure_mismatch",
"hnc_bridge_model",
}
},
"vmhnc_eta": np.asarray(float(vmhnc_ion["vmhnc_eta"])),
"vmhnc_sigma_bohr": np.asarray(
float(vmhnc_ion["vmhnc_sigma_bohr"])
),
"vmhnc_variational_residual": np.asarray(
float(vmhnc_ion["vmhnc_variational_residual"])
),
}
metadata = {
"archive_role": "project_generated_example_or_benchmark_baseline",
"archive_schema_version": "otter_johnson_2025_al_v3",
"citation_keys": list(
workflow_config(state, bridge_model="vmhnc").citation_keys
)
+ (["ThompsonEtAl2022"] if RUN_SAME_POTENTIAL_MD else []),
"closures": ["HNC", "Rosenfeld--Ashcroft VMHNC"],
"electronic_state_reused_between_closures": True,
"same_potential_md": {
"enabled": bool(RUN_SAME_POTENTIAL_MD),
"engine_citation_key": "ThompsonEtAl2022",
"ensemble_sequence": "NVT->NVE",
},
"producer": {
"script_relative_path": str(SCRIPT_PATH.relative_to(ROOT)),
"script_sha256": sha256_file(SCRIPT_PATH),
**git_revision(),
},
}
payload["metadata_json"] = np.asarray(
json.dumps(metadata, sort_keys=True, separators=(",", ":"))
)
return payload
def _write_lammps_pair_table(
path: Path,
r_bohr: np.ndarray,
potential_ha: np.ndarray,
) -> tuple[int, float]:
"""Write a shifted-force Al pair table in LAMMPS metal units."""
bohr_to_angstrom = 0.529177210903
selected = (r_bohr >= 0.1) & (r_bohr <= R_RETAIN_MAX_BOHR)
radius = np.asarray(r_bohr[selected], dtype=float) * bohr_to_angstrom
energy = np.asarray(potential_ha[selected], dtype=float) * 27.211386245988
force = -np.gradient(energy, radius, edge_order=2)
# Make both V and F continuous where the tabulated pair list ends.
force_cutoff = force[-1]
energy = energy - energy[-1] + (radius - radius[-1]) * force_cutoff
force = force - force_cutoff
with path.open("w", encoding="utf-8") as stream:
stream.write("# Otter IS-QOZ Al-Al pair potential\n\nAL_AL\n")
stream.write(f"N {radius.size}\n\n")
for index, (r_value, v_value, f_value) in enumerate(
zip(radius, energy, force),
start=1,
):
stream.write(
f"{index} {r_value:.12e} {v_value:.12e} {f_value:.12e}\n"
)
return int(radius.size), float(radius[-1])
def _read_lammps_rdf(path: Path) -> tuple[np.ndarray, np.ndarray, np.ndarray]:
"""Return radius, block-mean RDF, and block standard error."""
rows = [
line.split()
for line in path.read_text(encoding="utf-8").splitlines()
if line.strip() and not line.startswith("#")
]
blocks: list[np.ndarray] = []
cursor = 0
while cursor < len(rows):
block_size = int(rows[cursor][1])
blocks.append(
np.asarray(rows[cursor + 1 : cursor + 1 + block_size], dtype=float)
)
cursor += block_size + 1
if len(blocks) < 2:
raise RuntimeError("LAMMPS produced fewer than two RDF blocks.")
values = np.stack(blocks)
g_blocks = values[:, :, 2]
return (
values[0, :, 1] / 0.529177210903,
np.mean(g_blocks, axis=0),
np.std(g_blocks, axis=0, ddof=1) / np.sqrt(g_blocks.shape[0]),
)
def _read_lammps_nve_audit(path: Path) -> tuple[float, float, str]:
"""Return relative NVE energy drift, mean temperature, and version."""
lines = path.read_text(encoding="utf-8").splitlines()
headers = [
index
for index, line in enumerate(lines)
if line.split()[:5] == ["Step", "Temp", "PotEng", "KinEng", "TotEng"]
]
if len(headers) < 2:
raise RuntimeError("LAMMPS log does not contain the NVE thermo block.")
thermo_rows: list[list[float]] = []
for line in lines[headers[-1] + 1 :]:
if line.startswith("Loop time"):
break
values = line.split()
if len(values) < 7:
continue
try:
thermo_rows.append([float(value) for value in values[:7]])
except ValueError:
continue
if len(thermo_rows) < 2:
raise RuntimeError("LAMMPS NVE thermo block is incomplete.")
initial_energy = thermo_rows[0][4]
final_energy = thermo_rows[-1][4]
relative_drift = (final_energy - initial_energy) / abs(initial_energy)
mean_temperature = float(np.mean([row[1] for row in thermo_rows]))
version = lines[0].removeprefix("LAMMPS ").strip()
return float(relative_drift), mean_temperature, version
def run_same_potential_md(payload: dict[str, np.ndarray]) -> dict[str, np.ndarray]:
"""Run Johnson's NVT-to-NVE protocol with the stored Otter pair potential."""
lammps = shutil.which(LAMMPS_EXECUTABLE)
launcher = shutil.which(MPI_LAUNCHER)
if lammps is None or launcher is None:
raise FileNotFoundError("LAMMPS and an MPI launcher are required for MD.")
state_id = str(payload["state_id"].item())
workdir = CANDIDATE_DIR / "md_work" / state_id
workdir.mkdir(parents=True, exist_ok=True)
table_points, cutoff_angstrom = _write_lammps_pair_table(
workdir / "al_al.table",
np.asarray(payload["r_bohr"], dtype=float),
np.asarray(payload["vii_r_ha"], dtype=float),
)
n_i = float(payload["ion_density_bohr3"])
zbar = float(payload["zbar_partition"])
aluminium_mass_u = 26.9815385
mass_ratio = (
physical_constants["atomic mass constant"][0]
/ physical_constants["electron mass"][0]
)
atomic_time_ps = physical_constants["atomic unit of time"][0] * 1.0e12
omega_p_au = np.sqrt(
4.0 * np.pi * n_i * zbar**2 / (aluminium_mass_u * mass_ratio)
)
timestep_ps = (
MD_TIMESTEP_OMEGA_P_INV / omega_p_au * atomic_time_ps
)
thermostat_damp_ps = 0.5 / omega_p_au * atomic_time_ps
equilibration_steps = int(
round(MD_EQUILIBRATION_OMEGA_P_INV / MD_TIMESTEP_OMEGA_P_INV)
)
production_steps = int(
round(MD_PRODUCTION_OMEGA_P_INV / MD_TIMESTEP_OMEGA_P_INV)
)
rdf_every = 100
rdf_repeat = 50
rdf_block_steps = rdf_every * rdf_repeat
lattice_angstrom = (4.0 / (n_i / 0.529177210903**3)) ** (1.0 / 3.0)
seed = 20260825 + int(round(float(payload["te_ev"]) * 10.0))
cells = MD_CELLS_PER_AXIS
temperature_k = 11604.51812155008
rdf_fix = (
f"fix rdf all ave/time {rdf_every} {rdf_repeat} "
f"{rdf_block_steps} c_gr[*] mode vector ave one file rdf_blocks.dat"
)
thermostat_fix = (
f"fix thermostat all nvt temp {temperature_k:.8f} "
f"{temperature_k:.8f} {thermostat_damp_ps:.12e}"
)
input_text = f"""# Same-potential MD for {state_id}
units metal
dimension 3
boundary p p p
atom_style atomic
lattice fcc {lattice_angstrom:.12f}
region box block 0 {cells} 0 {cells} 0 {cells} units lattice
create_box 1 box
create_atoms 1 box
mass 1 {aluminium_mass_u:.10f}
pair_style table linear {table_points}
pair_coeff 1 1 al_al.table AL_AL {cutoff_angstrom:.12f}
neighbor 2.0 bin
neigh_modify delay 0 every 1 check yes
velocity all create {temperature_k:.8f} {seed} mom yes rot no dist gaussian
timestep {timestep_ps:.12e}
thermo 1000
thermo_style custom step temp pe ke etotal press density
thermo_modify flush yes
{thermostat_fix}
run {equilibration_steps}
unfix thermostat
reset_timestep 0
fix integrator all nve
compute gr all rdf {MD_RDF_BINS} 1 1
{rdf_fix}
run {production_steps}
"""
input_path = workdir / "in.al_md"
input_path.write_text(input_text, encoding="utf-8")
command = [
launcher,
"-np",
str(MPI_PROCESSES_PER_MD_STATE),
lammps,
"-in",
input_path.name,
"-log",
"log.lammps",
]
environment = os.environ.copy()
environment["OMP_NUM_THREADS"] = "1"
started = time.perf_counter()
with (workdir / "screen.log").open("w", encoding="utf-8") as screen:
subprocess.run(
command,
cwd=workdir,
env=environment,
stdout=screen,
stderr=subprocess.STDOUT,
check=True,
)
radius, g_r, sem = _read_lammps_rdf(workdir / "rdf_blocks.dat")
energy_drift, mean_temperature, lammps_version = _read_lammps_nve_audit(
workdir / "log.lammps"
)
return {
"md_r_bohr": radius,
"md_gii_r": g_r,
"md_gii_block_sem": sem,
"md_atoms": np.asarray(4 * MD_CELLS_PER_AXIS**3),
"md_rdf_blocks": np.asarray(production_steps // rdf_block_steps),
"md_timestep_omega_p_inv": np.asarray(MD_TIMESTEP_OMEGA_P_INV),
"md_equilibration_omega_p_inv": np.asarray(
MD_EQUILIBRATION_OMEGA_P_INV
),
"md_production_omega_p_inv": np.asarray(
MD_PRODUCTION_OMEGA_P_INV
),
"md_ensemble_sequence": np.asarray("NVT->NVE"),
"md_nve_relative_energy_drift": np.asarray(energy_drift),
"md_nve_mean_temperature_k": np.asarray(mean_temperature),
"md_lammps_version": np.asarray(lammps_version),
"md_elapsed_s": np.asarray(time.perf_counter() - started),
}
def add_same_potential_md(
states: dict[str, dict[str, np.ndarray]],
) -> None:
"""Add independent same-potential MD results with bounded MPI concurrency."""
with ProcessPoolExecutor(max_workers=MAX_PARALLEL_MD_STATES) as pool:
futures = {
pool.submit(run_same_potential_md, payload): state_id
for state_id, payload in states.items()
}
for future in as_completed(futures):
state_id = futures[future]
states[state_id].update(future.result())
print(f"[computed MD] {state_id}")
def solve_state(state: dict[str, Any]) -> dict[str, np.ndarray]:
"""Calculate one IS state, then solve both ionic closures on it."""
config = workflow_config(state, bridge_model="none")
started = time.perf_counter()
hnc_workflow = solve_plasma_workflow(config)
hnc_elapsed_s = time.perf_counter() - started
electronic = dict(hnc_workflow["electronic"])
started = time.perf_counter()
vmhnc_workflow = continue_plasma_workflow_from_electronic_result(
workflow_config(state, bridge_model="rosenfeld_ashcroft"),
electronic_kind=str(electronic["kind"]),
electronic_result=dict(electronic["result"]),
)
return pack_result(
hnc_workflow,
vmhnc_workflow,
state,
hnc_elapsed_s,
time.perf_counter() - started,
)
def git_revision() -> dict[str, Any]:
"""Record the checkout revision without pretending dirty output is committed."""
try:
head = subprocess.run(
["git", "rev-parse", "HEAD"],
cwd=ROOT,
check=True,
capture_output=True,
text=True,
).stdout.strip()
dirty = bool(
subprocess.run(
["git", "status", "--porcelain"],
cwd=ROOT,
check=True,
capture_output=True,
text=True,
).stdout.strip()
)
except (OSError, subprocess.CalledProcessError):
return {"git_commit": None, "worktree_dirty": None}
return {"git_commit": head, "worktree_dirty": dirty}
def refresh_archive_metadata(payload: dict[str, np.ndarray]) -> None:
"""Bring a completed closure/MD payload onto the compact archive schema."""
metadata = json.loads(str(payload["metadata_json"].item()))
metadata["schema_version"] = "otter_compact_archive_metadata_v1"
metadata["configuration"] = {
"structure_model": "IS",
"lfc_model": LFC_MODEL,
"ionic_closures": ["HNC", "Rosenfeld--Ashcroft VMHNC"],
"same_potential_md": bool("md_gii_r" in payload),
"hnc_tolerance": HNC_TOL,
"vmhnc_eta_tolerance": VMHNC_ETA_TOL,
}
metadata["state"] = {
"state_id": str(payload["state_id"].item()),
"element": "Al",
"rho_g_cc": float(payload["rho_g_cc"]),
"te_ev": float(payload["te_ev"]),
"ti_ev": float(payload["ti_ev"]),
}
metadata["producer"]["project"] = "Otter"
metadata["convergence"] = {
"hnc_best_residual": float(payload["hnc_best_residual"]),
"hnc_closure_mismatch": float(payload["hnc_closure_mismatch"]),
"vmhnc_best_residual": float(payload["vmhnc_hnc_best_residual"]),
"vmhnc_closure_mismatch": float(
payload["vmhnc_hnc_closure_mismatch"]
),
"vmhnc_variational_residual": float(
payload["vmhnc_variational_residual"]
),
"md_nve_relative_energy_drift": (
float(payload["md_nve_relative_energy_drift"])
if "md_nve_relative_energy_drift" in payload
else None
),
}
metadata["fields"] = sorted(
key for key in payload if key != "metadata_json"
)
payload["metadata_json"] = np.asarray(
json.dumps(metadata, sort_keys=True, separators=(",", ":"))
)
def save_candidates(
states: dict[str, dict[str, np.ndarray]],
failures: dict[str, str],
) -> None:
"""Write candidates and a manifest with real file hashes."""
CANDIDATE_DIR.mkdir(parents=True, exist_ok=True)
records: list[dict[str, Any]] = []
for definition in STATES:
state_id = str(definition["state_id"])
if state_id in failures:
records.append(
{
"state_id": state_id,
"status": "strict_calculation_rejected",
"baseline_file": None,
"baseline_sha256": None,
"reason": failures[state_id],
}
)
continue
filename = f"{state_id}.npz"
path = CANDIDATE_DIR / filename
refresh_archive_metadata(states[state_id])
np.savez_compressed(path, **states[state_id])
record = {
"state_id": state_id,
"status": "candidate_unreviewed",
"baseline_file": filename,
"baseline_sha256": sha256_file(path),
"structure_model": "IS",
"ionic_closures": ["HNC", "Rosenfeld--Ashcroft VMHNC"],
"zbar_partition": float(states[state_id]["zbar_partition"]),
"vmhnc_eta": float(states[state_id]["vmhnc_eta"]),
"vmhnc_variational_residual": float(
states[state_id]["vmhnc_variational_residual"]
),
"same_potential_md": "md_gii_r" in states[state_id],
}
records.append(record)
print(f"[candidate] {path}")
candidate_manifest = {
"schema_version": "otter_candidate_manifest_v1",
"benchmark_id": BENCHMARK_ID,
"producer": {
"script_relative_path": (
"benchmarks/examples/"
"plot_johnson_et_al_2025_two_temperature_al.py"
),
# Sphinx-Gallery executes generated source without defining
# ``__file__``; ROOT was already located in both execution modes.
"script_sha256": sha256_file(SCRIPT_PATH),
**git_revision(),
},
"configuration": {
"aa_n_points": 4096,
"qoz_n_points_before_padding": QOZ_N_POINTS,
"continuum_workers_per_state": CONTINUUM_WORKERS_PER_STATE,
"lfc_model": LFC_MODEL,
"hnc_tolerance": HNC_TOL,
"hnc_transform_closure_tolerance": HNC_CLOSURE_TOL,
"hnc_primary_solver": "anderson",
"hnc_fallback_solver": "newton_krylov",
"hnc_potential_scales": [
float(value)
for value in workflow_config(STATES[0]).hnc_potential_scales
],
"hnc_adaptive_continuation": bool(
workflow_config(STATES[0]).hnc_adaptive_continuation
),
"ionic_closures": ["HNC", "Rosenfeld--Ashcroft VMHNC"],
"electronic_state_reused_between_closures": True,
"vmhnc_points_per_diameter": int(
workflow_config(STATES[0]).vmhnc_points_per_diameter
),
"vmhnc_eta_bounds": [
float(value)
for value in workflow_config(STATES[0]).vmhnc_eta_bounds
],
"vmhnc_eta_tolerance": float(
workflow_config(STATES[0]).vmhnc_eta_tol
),
"same_potential_md": {
"enabled": bool(RUN_SAME_POTENTIAL_MD),
"atoms": 4 * MD_CELLS_PER_AXIS**3,
"ensemble_sequence": "NVT->NVE",
"timestep_omega_p_inv": MD_TIMESTEP_OMEGA_P_INV,
"equilibration_omega_p_inv": MD_EQUILIBRATION_OMEGA_P_INV,
"production_omega_p_inv": MD_PRODUCTION_OMEGA_P_INV,
"rdf_bins": MD_RDF_BINS,
},
},
"states": records,
}
(CANDIDATE_DIR / "candidate_manifest.json").write_text(
json.dumps(candidate_manifest, indent=2) + "\n",
encoding="utf-8",
)
def solve_all_states() -> dict[str, dict[str, np.ndarray]]:
"""Calculate the four independent states with bounded parallelism."""
solved: dict[str, dict[str, np.ndarray]] = {}
failures: dict[str, str] = {}
if MAX_STATE_WORKERS <= 1:
for state in STATES:
state_id = str(state["state_id"])
try:
solved[state_id] = solve_state(state)
except Exception as exc:
failures[state_id] = f"{type(exc).__name__}: {exc}"
print(f"[strictly rejected] {state_id}: {exc}")
else:
print(f"[computed] {state_id}")
else:
with ProcessPoolExecutor(max_workers=MAX_STATE_WORKERS) as pool:
futures = {pool.submit(solve_state, state): state for state in STATES}
for future in as_completed(futures):
state = futures[future]
state_id = str(state["state_id"])
try:
solved[state_id] = future.result()
except Exception as exc:
failures[state_id] = f"{type(exc).__name__}: {exc}"
print(f"[strictly rejected] {state_id}: {exc}")
else:
print(f"[computed] {state_id}")
if not solved:
raise RuntimeError("Every Otter state failed its strict checks.")
if RUN_SAME_POTENTIAL_MD:
add_same_potential_md(solved)
save_candidates(solved, failures)
return solved
def reference_filename(te_ev: float, token: str) -> str:
return (
f"Zak_2025_Al_rho2.7_Te{te_ev:.1f}_Ti1.0_{token}.csv"
)
def load_references() -> dict[tuple[float, str], tuple[np.ndarray, np.ndarray]]:
"""Verify the attributed reference manifest and load unchanged Bohr values."""
manifest = json.loads(
(REFERENCE_DIR / "manifest.json").read_text(encoding="utf-8")
)
if manifest.get("reference_id") != BENCHMARK_ID:
raise ValueError("Unexpected reference-data manifest.")
if manifest.get("units", {}).get("column_1") != "Bohr":
raise ValueError("Johnson Fig. 2 reference radius must be Bohr.")
by_path = {str(item["path"]): item for item in manifest["files"]}
references: dict[tuple[float, str], tuple[np.ndarray, np.ndarray]] = {}
for state in STATES:
te_ev = float(state["te_ev"])
for token, _label, _marker in REFERENCE_METHODS:
filename = reference_filename(te_ev, token)
record = by_path.get(filename)
if record is None:
raise FileNotFoundError(f"Missing manifest record {filename}.")
path = REFERENCE_DIR / filename
if sha256_file(path) != str(record["sha256"]):
raise RuntimeError(f"Checksum mismatch for {path}.")
values = np.asarray(np.genfromtxt(path, delimiter=","), dtype=float)
if values.ndim != 2 or values.shape[1] < 2:
raise ValueError(f"Expected two columns in {path}.")
mask = np.isfinite(values[:, 0]) & np.isfinite(values[:, 1])
references[(te_ev, token)] = (
values[mask, 0],
values[mask, 1],
)
return references
if not USE_PRECOMPUTED_DATA:
states = solve_all_states()
elif USE_RECOMPUTED_CANDIDATES:
states = load_recomputed_candidates()
else:
states = load_precomputed_states()
references = load_references()
print(
"Using "
+ (
"new candidates calculated directly by this gallery script."
if not USE_PRECOMPUTED_DATA
else (
"checksummed, unreviewed recomputation candidates."
if USE_RECOMPUTED_CANDIDATES
else "reviewed, checksummed Otter baselines."
)
)
)
def print_metrics() -> None:
"""Report interpolation errors without treating unlike methods as exact."""
print(
f"{'state':24s} {'Otter closure':16s} {'reference':20s} "
f"{'RMSE':>10s} {'MAE':>10s} {'max':>10s}"
)
for definition in STATES:
state_id = str(definition["state_id"])
if state_id not in states:
print(f"{state_id:24s} {'no accepted Otter state':20s}")
continue
te_ev = float(definition["te_ev"])
payload = states[state_id]
closures = (
("HNC", "r_bohr", "gii_r"),
("VMHNC", "vmhnc_r_bohr", "vmhnc_gii_r"),
("same-potential MD", "md_r_bohr", "md_gii_r"),
)
for closure, r_key, g_key in closures:
if r_key not in payload:
continue
r_otter = np.asarray(payload[r_key], dtype=float)
g_otter = np.asarray(payload[g_key], dtype=float)
for token, label, _marker in REFERENCE_METHODS:
r_ref, g_ref = references[(te_ev, token)]
mask = (r_ref >= r_otter[0]) & (r_ref <= r_otter[-1])
delta = np.interp(r_ref[mask], r_otter, g_otter) - g_ref[mask]
print(
f"{state_id:24s} {closure:16s} {label:20s} "
f"{np.sqrt(np.mean(delta**2)):10.4e} "
f"{np.mean(np.abs(delta)):10.4e} "
f"{np.max(np.abs(delta)):10.4e}"
)
print(
f"{state_id}: shared IS Zbar={float(payload['zbar_partition']):.8f}, "
f"VMHNC eta={float(payload['vmhnc_eta']):.8f}, "
"variational residual="
f"{float(payload['vmhnc_variational_residual']):.3e}"
)
print_metrics()
Using reviewed, checksummed Otter baselines.
state Otter closure reference RMSE MAE max
al_rho2p7_te1_ti1 HNC 2TTCP HNC+bridge 6.1577e-02 4.7264e-02 1.2343e-01
al_rho2p7_te1_ti1 HNC DFT-MD 6.1550e-02 4.4569e-02 1.7476e-01
al_rho2p7_te1_ti1 HNC YOCP HNC+bridge 3.0184e-01 2.5171e-01 5.4773e-01
al_rho2p7_te1_ti1 VMHNC 2TTCP HNC+bridge 2.3226e-02 1.9364e-02 4.5302e-02
al_rho2p7_te1_ti1 VMHNC DFT-MD 1.3836e-01 1.0960e-01 3.2401e-01
al_rho2p7_te1_ti1 VMHNC YOCP HNC+bridge 3.5739e-01 3.0285e-01 6.3079e-01
al_rho2p7_te1_ti1 same-potential MD 2TTCP HNC+bridge 2.5134e-02 2.0100e-02 4.8801e-02
al_rho2p7_te1_ti1 same-potential MD DFT-MD 1.3169e-01 1.0618e-01 3.1333e-01
al_rho2p7_te1_ti1 same-potential MD YOCP HNC+bridge 3.4595e-01 2.9395e-01 6.1181e-01
al_rho2p7_te1_ti1: shared IS Zbar=3.00047851, VMHNC eta=0.31804317, variational residual=-9.447e-06
al_rho2p7_te3_ti1 HNC 2TTCP HNC+bridge 4.4180e-02 3.3307e-02 9.9845e-02
al_rho2p7_te3_ti1 HNC DFT-MD 5.2995e-02 3.8873e-02 1.7688e-01
al_rho2p7_te3_ti1 HNC YOCP HNC+bridge 3.0476e-01 2.5535e-01 5.3618e-01
al_rho2p7_te3_ti1 VMHNC 2TTCP HNC+bridge 3.7234e-02 3.0034e-02 9.3070e-02
al_rho2p7_te3_ti1 VMHNC DFT-MD 1.2403e-01 9.8990e-02 3.3606e-01
al_rho2p7_te3_ti1 VMHNC YOCP HNC+bridge 3.6490e-01 3.0721e-01 6.2311e-01
al_rho2p7_te3_ti1 same-potential MD 2TTCP HNC+bridge 4.5489e-02 3.8238e-02 9.6951e-02
al_rho2p7_te3_ti1 same-potential MD DFT-MD 1.2733e-01 1.0312e-01 3.4288e-01
al_rho2p7_te3_ti1 same-potential MD YOCP HNC+bridge 3.6172e-01 3.0500e-01 6.1846e-01
al_rho2p7_te3_ti1: shared IS Zbar=3.00048042, VMHNC eta=0.33116962, variational residual=-9.736e-06
al_rho2p7_te10_ti1 HNC 2TTCP HNC+bridge 6.3042e-02 5.1799e-02 1.1627e-01
al_rho2p7_te10_ti1 HNC DFT-MD 6.4001e-02 4.8947e-02 1.7525e-01
al_rho2p7_te10_ti1 HNC YOCP HNC+bridge 1.8099e-01 1.4830e-01 3.2139e-01
al_rho2p7_te10_ti1 VMHNC 2TTCP HNC+bridge 4.4235e-02 3.7352e-02 7.9551e-02
al_rho2p7_te10_ti1 VMHNC DFT-MD 1.4526e-01 1.2072e-01 3.5442e-01
al_rho2p7_te10_ti1 VMHNC YOCP HNC+bridge 2.6963e-01 2.2623e-01 4.5658e-01
al_rho2p7_te10_ti1 same-potential MD 2TTCP HNC+bridge 4.2319e-02 3.7165e-02 6.9763e-02
al_rho2p7_te10_ti1 same-potential MD DFT-MD 1.4131e-01 1.1742e-01 3.3928e-01
al_rho2p7_te10_ti1 same-potential MD YOCP HNC+bridge 2.6343e-01 2.2293e-01 4.4258e-01
al_rho2p7_te10_ti1: shared IS Zbar=3.02666935, VMHNC eta=0.36034138, variational residual=-2.074e-06
al_rho2p7_te30_ti1 HNC 2TTCP HNC+bridge 1.4143e-01 1.1412e-01 2.4985e-01
al_rho2p7_te30_ti1 HNC DFT-MD 9.4847e-02 7.3402e-02 2.4227e-01
al_rho2p7_te30_ti1 HNC YOCP HNC+bridge 4.0609e-02 2.8928e-02 1.1939e-01
al_rho2p7_te30_ti1 VMHNC 2TTCP HNC+bridge 6.1200e-02 4.7426e-02 1.4732e-01
al_rho2p7_te30_ti1 VMHNC DFT-MD 1.1592e-01 8.8115e-02 2.5727e-01
al_rho2p7_te30_ti1 VMHNC YOCP HNC+bridge 2.0480e-01 1.6739e-01 3.8598e-01
al_rho2p7_te30_ti1 same-potential MD 2TTCP HNC+bridge 4.5729e-02 3.8387e-02 9.3464e-02
al_rho2p7_te30_ti1 same-potential MD DFT-MD 1.0126e-01 7.6281e-02 2.3890e-01
al_rho2p7_te30_ti1 same-potential MD YOCP HNC+bridge 1.8690e-01 1.5519e-01 3.2567e-01
al_rho2p7_te30_ti1: shared IS Zbar=4.48038818, VMHNC eta=0.44534229, variational residual=-2.120e-05
Pair-distribution comparison
Both Otter curves use the same pseudoatom IS-QOZ potential. Their difference isolates the ionic closure; neither is relabelled as the paper’s 2TTCP model. At low Te, neither closure can restore chemical bonding absent from the spherical pseudoatom pair potential.
set_style("thesis", palette="bing")
fig, axes = plt.subplots(
2,
2,
figsize=grid_figsize(2, 2),
sharex=True,
sharey=True,
)
axes = np.asarray(axes).ravel()
colors = plt.rcParams["axes.prop_cycle"].by_key()["color"]
for panel_index, (axis, definition) in enumerate(zip(axes, STATES)):
state_id = str(definition["state_id"])
te_ev = float(definition["te_ev"])
if state_id in states:
payload = states[state_id]
axis.plot(
np.asarray(payload["r_bohr"]),
np.asarray(payload["gii_r"]),
color="black",
lw=2.3,
label="Otter IS-QOZ/HNC",
zorder=2,
)
axis.plot(
np.asarray(payload["vmhnc_r_bohr"]),
np.asarray(payload["vmhnc_gii_r"]),
color=colors[3 % len(colors)],
lw=2.1,
ls="--",
alpha=0.9,
label="Otter IS-QOZ/VMHNC",
zorder=2,
)
if "md_gii_r" in payload:
r_md = np.asarray(payload["md_r_bohr"], dtype=float)
g_md = np.asarray(payload["md_gii_r"], dtype=float)
sem_md = np.asarray(payload["md_gii_block_sem"], dtype=float)
axis.plot(
r_md,
g_md,
color=colors[4 % len(colors)],
lw=1.9,
ls="-.",
label="Otter IS-potential MD",
zorder=2,
)
axis.fill_between(
r_md,
g_md - 2.0 * sem_md,
g_md + 2.0 * sem_md,
color=colors[4 % len(colors)],
alpha=0.12,
linewidth=0.0,
zorder=1,
)
else:
axis.text(
0.97,
0.05,
"No accepted Otter baseline",
transform=axis.transAxes,
ha="right",
va="bottom",
color="0.25",
fontsize=9,
)
for method_index, (token, label, marker) in enumerate(REFERENCE_METHODS):
r_ref, g_ref = references[(te_ev, token)]
options: dict[str, Any] = {
"s": 40,
"marker": marker,
"linewidths": 1.3,
"label": label if panel_index == 0 else "_nolegend_",
"zorder": 3,
}
color = colors[method_index % len(colors)]
if marker == "x":
options["color"] = color
else:
options["facecolors"] = "none"
options["edgecolors"] = color
axis.scatter(r_ref, g_ref, **options)
axis.set_title(
rf"{definition['panel']}: $T_e={te_ev:g}$ eV, $T_i=1$ eV"
)
axis.set_xlabel(r"$r$ [Bohr]")
axis.set_xlim(2.5, 8.2)
axis.set_ylim(-0.05, 2.30)
axis.axhline(1.0, color="0.55", lw=0.8, ls=":")
if panel_index == 0:
axis.set_ylabel(r"$g_{ii}(r)$")
if panel_index == 0:
axis.legend(
fontsize="small",
loc="best",
)
fig.suptitle(
r"Al, $\rho=2.7$ g cm$^{-3}$: "
"Otter versus Johnson et al. (2025)",
y=0.985,
)
fig.text(
0.5,
0.006,
"Reference data: Johnson et al. (2025), "
"doi:10.1103/5c29-kdx1.",
ha="center",
va="bottom",
fontsize=7.5,
)
fig.tight_layout(rect=(0.0, 0.025, 1.0, 0.95), pad=0.55)
saved_paths = save_figure(
fig,
FIGURE_DIR / "johnson_et_al_2025_two_temperature_al_gii",
)
print(
"[figure] "
+ ", ".join(
f"{kind}={path.relative_to(ROOT)}"
for kind, path in saved_paths.items()
)
)
if "agg" not in plt.get_backend().lower():
plt.show()
[figure] png=benchmarks/outputs/johnson_et_al_2025_two_temperature_al/figures/johnson_et_al_2025_two_temperature_al_gii.png, pdf=benchmarks/outputs/johnson_et_al_2025_two_temperature_al/figures/johnson_et_al_2025_two_temperature_al_gii.pdf
