Aluminium KS-DFT and Thomas–Fermi comparison
This example compares Kohn–Sham density-functional theory (KS-DFT, API model
qm) and
finite-temperature Thomas–Fermi (TF) average atoms for aluminium at
rho=8.1 g/cc and T=1, 15, 50, 100 eV. Both electronic models feed
the same ion-sphere pseudoatom, QOZ/HNC, and Chabrier-1990 LFC construction.
The model follows Starrett and Saumon [2014] and the finite-temperature
jellium LFC follows Chabrier [1990]. See the model-comparison
notes for convergence criteria, units, and
interpretation.

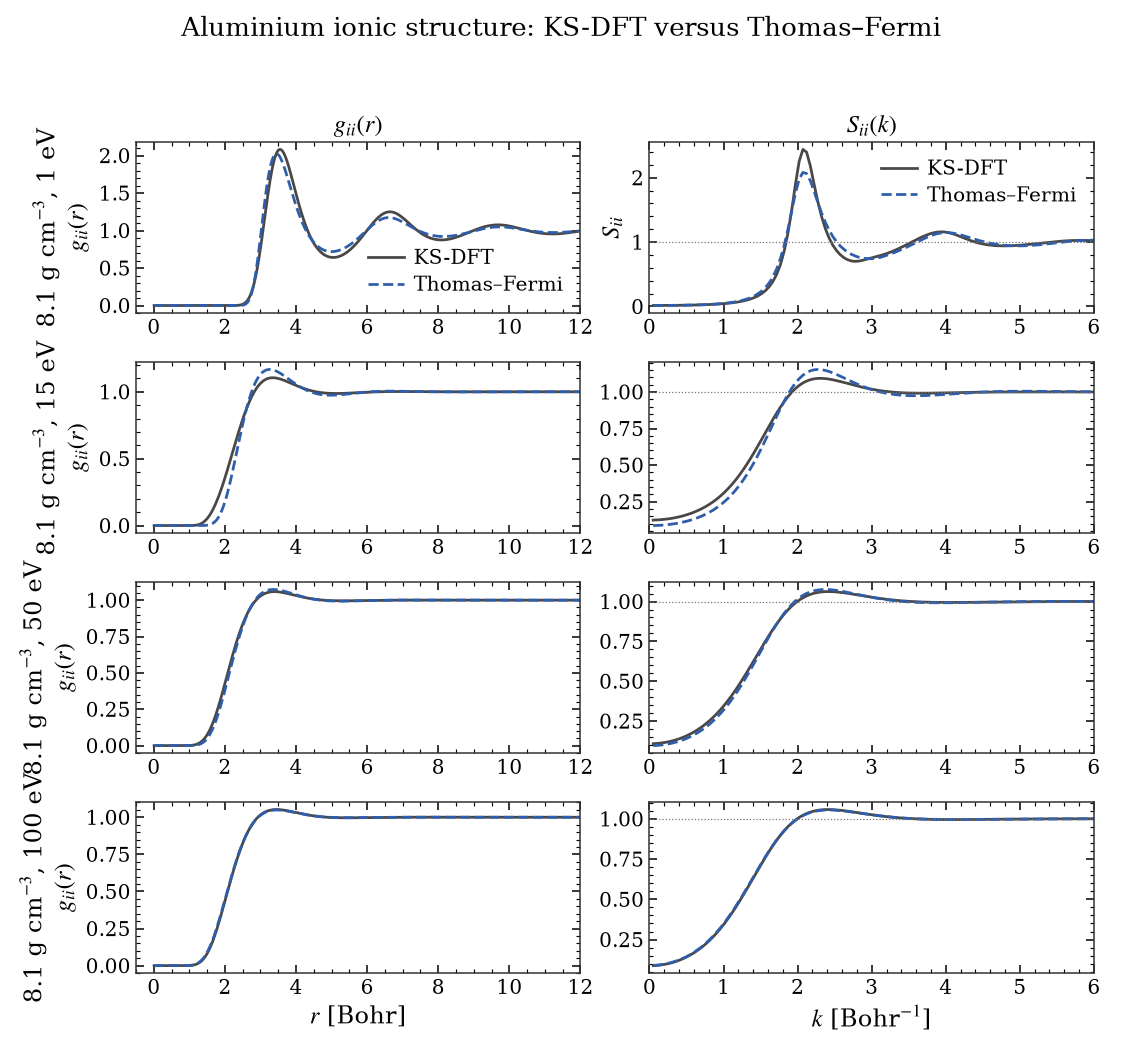

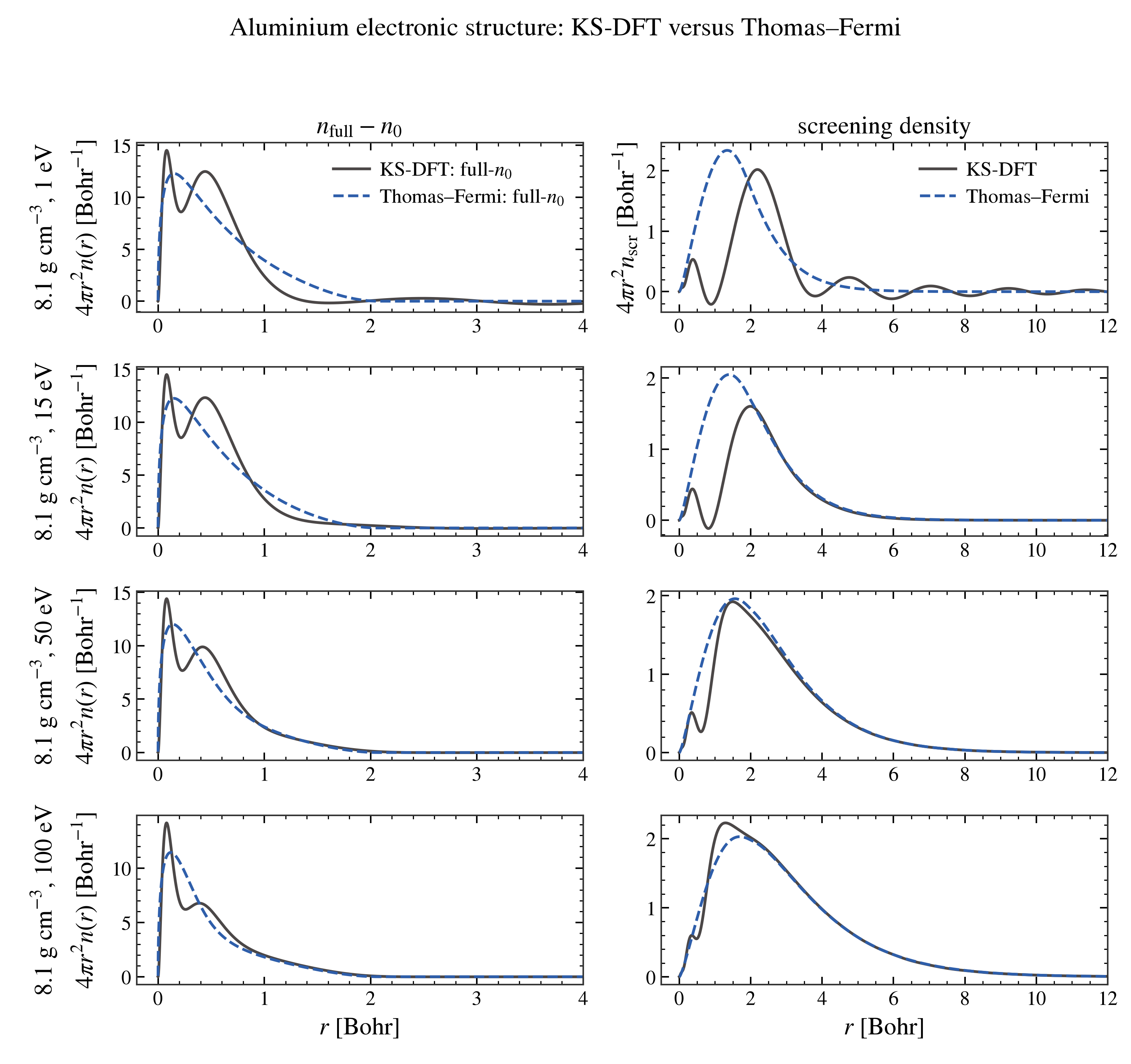

The two figures are exported as matching PNG and vector PDF files under
benchmarks/outputs/al_qm_tf/figures for documentation and slides.
Reproduction
From the root of the complete Otter checkout, using Poetry, run:
poetry run python docs/examples/plot_al_qm_tf.py
Downloads are optional: .ipynb launches this repository script; .zip
contains both formats. See Reproducing examples and benchmarks for setup.
The script calculates the states from their input parameters and then plots the results. No bundled Otter NPZ is required. Numerical outputs are written locally; literature reference tables remain inputs to the comparison.
Recorded results
The figures and output below are from the recorded validation run; running the source recalculates them with the installed Otter version.
Recorded terminal output
Otter 0.4.1
[run] Al | rho=8.1 g/cm^3 | Te=1 eV | Ti=1 eV | QM -> QOZ/HNC
[AA] Al (Z=13) | Rws=2.073224 a0 | full + external
[AA/full SCF: stage 1]
iter | d_n | d_v
0 | nan | 5.240e-02
1 | 1.520e-02 | 4.620e-02
2 | 2.703e-02 | 4.075e-02
3 | 2.403e-02 | 3.584e-02
4 | 2.034e-02 | 3.154e-02
[AA/full SCF: stage 2]
iter | d_n | d_v
0 | nan | 2.788e-02
1 | 1.405e-02 | 2.492e-02
2 | 1.153e-02 | 2.271e-02
3 | 9.417e-03 | 2.134e-02
4 | 7.677e-03 | 2.103e-02
5 | 6.301e-03 | 2.248e-02
6 | 5.816e-03 | 3.229e-02
7 | 1.134e-02 | 1.286e-02
8 | 3.621e-03 | 4.113e-03
9 | 3.776e-03 | 1.244e-02
10 | 2.613e-02 | 9.677e-03
11 | 1.483e-02 | 1.428e-02
12 | 3.320e-02 | 1.381e-03
13 | 2.429e-03 | 2.561e-03
14 | 1.430e-03 | 1.860e-03
15 | 3.396e-03 | 2.924e-04
16 | 7.165e-04 | 2.559e-04
17 | 8.769e-04 | 7.320e-05
18 | 1.407e-04 | 6.769e-06
19 | 1.720e-05 | 3.018e-05
20 | 2.151e-05 | 2.317e-06
21 | 3.835e-06 | 1.815e-06
22 | 4.060e-06 | 2.601e-06
23 | 9.929e-06 | 2.508e-07
[AA/external SCF]
iter | d_n | d_v
0 | 2.447e-07 | 3.853e+12
1 | 1.171e-01 | 1.113e+00
2 | 1.228e-01 | 7.093e-01
3 | 3.025e-02 | 3.105e-01
4 | 9.501e-03 | 1.207e-01
5 | 3.736e-03 | 1.111e-02
6 | 5.158e-04 | 1.324e-02
7 | 3.172e-04 | 4.434e-03
8 | 1.352e-04 | 8.572e-04
9 | 2.621e-05 | 2.125e-04
10 | 5.853e-06 | 9.190e-04
11 | 2.433e-05 | 3.834e-04
12 | 7.179e-06 | 1.790e-04
13 | 5.440e-06 | 1.313e-05
14 | 2.446e-07 | 3.496e-05
15 | 8.033e-07 | 2.359e-06
16 | 5.997e-08 | 7.449e-07
17 | 1.648e-08 | 4.449e-07
[AA] converged=True | mu=1.04477399 Ha | Zbar=3.02589432 | time=25.394 s
Bound levels
level | E [Ha] | f_FD
------+------------+----------
1s | -53.85600 | 1.00000
2s | -2.73953 | 1.00000
2p | -1.36869 | 1.00000
[ion] HNC iterations=35 QOZ=0.821 s HNC=0.060 s
[done] total time=26.288 s
Otter 0.4.1
[run] Al | rho=8.1 g/cm^3 | Te=1 eV | Ti=1 eV | TF -> QOZ/HNC
[computed] Al, T=1 eV, model=qm
[AA/TF] Al (Z=13) Te=1 eV rho=8.1 g/cc Rws=2.073224 Bohr run_mode=full+ext
[AA/TF full SCF]
iter | d_n | d_v
1 | inf | 6.318e-01
10 | 2.615e-02 | 9.893e-03
20 | 1.234e-04 | 1.458e-04
[AA/TF external SCF]
iter | d_n | d_v
1 | inf | 2.407e+01
10 | 1.603e-02 | 3.760e-01
20 | 9.006e-06 | 3.168e-04
30 | 5.165e-06 | 5.359e-04
[AA/TF] converged=True mu=0.93275746 Ha Zbar=3.21837387 time=0.312 s
[ion] HNC iterations=43 QOZ=0.812 s HNC=0.075 s
[done] total time=1.206 s
Otter 0.4.1
[run] Al | rho=8.1 g/cm^3 | Te=15 eV | Ti=15 eV | QM -> QOZ/HNC
[AA] Al (Z=13) | Rws=2.073224 a0 | full + external
[AA/full SCF: stage 1]
iter | d_n | d_v
[computed] Al, T=1 eV, model=tf
0 | nan | 5.240e-02
1 | 2.837e-02 | 4.639e-02
2 | 2.497e-02 | 4.088e-02
3 | 2.165e-02 | 3.600e-02
4 | 1.843e-02 | 3.188e-02
[AA/full SCF: stage 2]
iter | d_n | d_v
0 | nan | 2.866e-02
1 | 1.289e-02 | 2.644e-02
2 | 1.085e-02 | 2.544e-02
3 | 9.586e-03 | 2.612e-02
4 | 9.820e-03 | 2.955e-02
5 | 8.759e-03 | 3.222e-02
6 | 9.402e-03 | 1.203e-02
7 | 4.096e-03 | 2.844e-02
8 | 3.569e-02 | 8.738e-03
9 | 7.683e-03 | 3.056e-03
10 | 1.791e-03 | 8.456e-03
11 | 1.607e-02 | 2.079e-03
12 | 3.652e-03 | 1.375e-03
13 | 2.032e-03 | 6.459e-04
14 | 9.115e-04 | 1.945e-04
15 | 3.451e-04 | 1.063e-04
16 | 1.789e-04 | 2.766e-05
17 | 5.530e-05 | 1.381e-05
18 | 4.122e-05 | 1.040e-05
19 | 2.273e-05 | 1.346e-06
20 | 1.789e-06 | 2.312e-06
21 | 4.787e-06 | 1.467e-07
22 | 3.368e-07 | 3.287e-07
[AA/external SCF]
iter | d_n | d_v
0 | 9.438e-07 | 3.339e+12
1 | 8.098e-02 | 1.088e+00
2 | 7.989e-02 | 7.904e-01
3 | 2.613e-02 | 2.887e-01
4 | 7.169e-03 | 1.307e-01
5 | 2.836e-03 | 3.971e-02
6 | 9.969e-04 | 1.028e-02
7 | 2.248e-04 | 9.499e-03
8 | 1.756e-04 | 9.538e-04
9 | 2.088e-05 | 6.133e-04
10 | 1.103e-05 | 5.305e-04
11 | 6.929e-06 | 2.855e-05
12 | 1.095e-06 | 3.737e-05
13 | 8.038e-07 | 3.541e-05
14 | 4.580e-07 | 9.104e-07
15 | 3.025e-08 | 1.764e-06
16 | 2.290e-08 | 1.265e-07
[AA] converged=True | mu=0.61838663 Ha | Zbar=3.16542837 | time=19.692 s
Bound levels
level | E [Ha] | f_FD
------+------------+----------
1s | -53.99532 | 1.00000
2s | -2.81297 | 0.99802
2p | -1.44710 | 0.97695
[ion] HNC iterations=10 QOZ=0.834 s HNC=0.018 s
[done] total time=20.555 s
Otter 0.4.1
[run] Al | rho=8.1 g/cm^3 | Te=15 eV | Ti=15 eV | TF -> QOZ/HNC
[computed] Al, T=15 eV, model=qm
[AA/TF] Al (Z=13) Te=15 eV rho=8.1 g/cc Rws=2.073224 Bohr run_mode=full+ext
[AA/TF full SCF]
iter | d_n | d_v
1 | inf | 6.288e-01
10 | 3.439e-02 | 2.299e-02
20 | 1.105e-04 | 6.723e-05
30 | 4.799e-05 | 4.010e-05
[AA/TF external SCF]
iter | d_n | d_v
1 | inf | 2.052e+01
10 | 6.365e-03 | 3.201e-01
20 | 1.398e-06 | 1.169e-04
30 | 1.246e-06 | 1.321e-04
[AA/TF] converged=True mu=0.69292041 Ha Zbar=3.59741450 time=0.234 s
[ion] HNC iterations=10 QOZ=0.820 s HNC=0.018 s
[done] total time=1.079 s
Otter 0.4.1
[run] Al | rho=8.1 g/cm^3 | Te=50 eV | Ti=50 eV | QM -> QOZ/HNC
[AA] Al (Z=13) | Rws=2.073224 a0 | full + external
[AA/full SCF: stage 1]
iter | d_n | d_v
[computed] Al, T=15 eV, model=tf
0 | nan | 5.256e-02
1 | 3.132e-02 | 4.679e-02
2 | 2.844e-02 | 4.157e-02
3 | 2.592e-02 | 3.698e-02
4 | 2.366e-02 | 3.304e-02
[AA/full SCF: stage 2]
iter | d_n | d_v
0 | nan | 2.982e-02
1 | 1.924e-02 | 2.726e-02
2 | 1.721e-02 | 2.543e-02
3 | 1.560e-02 | 2.444e-02
4 | 1.476e-02 | 2.424e-02
5 | 1.148e-02 | 3.601e-02
6 | 8.153e-03 | 1.536e-02
7 | 4.071e-03 | 1.440e-02
8 | 1.856e-02 | 1.748e-03
9 | 1.485e-03 | 4.773e-03
10 | 7.180e-03 | 2.152e-03
11 | 5.601e-04 | 5.077e-04
12 | 3.245e-04 | 7.360e-04
13 | 1.092e-03 | 4.642e-05
14 | 4.170e-05 | 5.291e-05
15 | 6.088e-05 | 1.863e-05
16 | 1.666e-05 | 3.504e-06
17 | 6.040e-06 | 7.342e-07
18 | 1.014e-06 | 1.945e-06
19 | 3.680e-06 | 6.959e-08
[AA/external SCF]
iter | d_n | d_v
0 | 2.520e-06 | 4.735e+12
1 | 5.207e-02 | 1.037e+00
2 | 4.905e-02 | 9.678e-01
3 | 2.437e-02 | 2.432e-01
4 | 5.829e-03 | 6.429e-02
5 | 1.464e-03 | 1.689e-02
6 | 6.668e-04 | 4.253e-03
7 | 1.022e-04 | 2.774e-03
8 | 5.167e-05 | 9.861e-05
9 | 2.771e-06 | 1.586e-04
10 | 2.594e-06 | 2.541e-04
11 | 3.431e-06 | 3.437e-05
12 | 8.005e-07 | 2.469e-05
13 | 4.245e-07 | 6.313e-06
14 | 8.111e-08 | 1.267e-06
15 | 1.746e-08 | 7.473e-07
[AA] converged=True | mu=-1.44023710 Ha | Zbar=5.45747083 | time=26.661 s
Bound levels
level | E [Ha] | f_FD
------+------------+----------
1s | -55.99999 | 1.00000
2s | -3.93544 | 0.79543
2p | -2.65265 | 0.65922
[ion] HNC iterations=16 QOZ=0.798 s HNC=0.027 s
[done] total time=27.497 s
Otter 0.4.1
[run] Al | rho=8.1 g/cm^3 | Te=50 eV | Ti=50 eV | TF -> QOZ/HNC
[computed] Al, T=50 eV, model=qm
[AA/TF] Al (Z=13) Te=50 eV rho=8.1 g/cc Rws=2.073224 Bohr run_mode=full+ext
[AA/TF full SCF]
iter | d_n | d_v
1 | inf | 6.096e-01
10 | 7.671e-02 | 4.045e-02
[AA/TF external SCF]
iter | d_n | d_v
1 | inf | 1.732e+01
10 | 6.042e-04 | 2.952e-02
20 | 1.620e-06 | 3.681e-04
[AA/TF] converged=True mu=-1.30100851 Ha Zbar=5.01004236 time=0.201 s
[ion] HNC iterations=20 QOZ=0.818 s HNC=0.034 s
[done] total time=1.060 s
Otter 0.4.1
[run] Al | rho=8.1 g/cm^3 | Te=100 eV | Ti=100 eV | QM -> QOZ/HNC
[AA] Al (Z=13) | Rws=2.073224 a0 | full + external
[AA/full SCF: stage 1]
iter | d_n | d_v
[computed] Al, T=50 eV, model=tf
0 | nan | 5.205e-02
1 | 4.094e-02 | 4.620e-02
2 | 3.744e-02 | 4.084e-02
3 | 3.303e-02 | 3.597e-02
4 | 2.813e-02 | 3.159e-02
[AA/full SCF: stage 2]
iter | d_n | d_v
0 | nan | 2.787e-02
1 | 1.905e-02 | 2.453e-02
2 | 1.551e-02 | 2.174e-02
3 | 1.281e-02 | 1.954e-02
4 | 1.099e-02 | 1.804e-02
5 | 1.351e-02 | 4.831e-02
6 | 7.715e-03 | 1.725e-02
7 | 2.979e-03 | 1.236e-02
8 | 1.122e-02 | 6.340e-03
9 | 1.540e-03 | 9.316e-03
10 | 6.998e-03 | 2.724e-03
11 | 9.725e-04 | 5.961e-04
12 | 2.253e-04 | 4.798e-04
13 | 6.114e-04 | 5.670e-05
14 | 6.617e-05 | 1.575e-05
15 | 1.369e-05 | 2.467e-05
16 | 2.017e-05 | 4.435e-06
17 | 5.704e-06 | 2.015e-07
18 | 2.737e-07 | 6.031e-07
19 | 1.041e-06 | 6.425e-08
[AA/external SCF]
iter | d_n | d_v
0 | 2.796e-06 | 3.270e+12
1 | 2.128e-02 | 1.232e+00
2 | 1.969e-02 | 1.053e+00
3 | 2.174e-02 | 2.422e-01
4 | 5.039e-03 | 3.778e-02
5 | 7.088e-04 | 1.516e-02
6 | 3.564e-04 | 2.367e-03
7 | 3.920e-05 | 3.290e-04
8 | 6.510e-06 | 1.212e-04
9 | 1.575e-06 | 1.205e-04
10 | 1.786e-06 | 2.379e-06
11 | 3.731e-08 | 2.377e-06
12 | 3.124e-08 | 2.643e-06
[AA] converged=True | mu=-5.77548285 Ha | Zbar=7.69248485 | time=35.055 s
Bound levels
level | E [Ha] | f_FD
------+------------+----------
1s | -58.57673 | 1.00000
2s | -5.33777 | 0.47026
2p | -4.20236 | 0.39459
[ion] HNC iterations=16 QOZ=0.812 s HNC=0.027 s
[done] total time=35.906 s
Otter 0.4.1
[run] Al | rho=8.1 g/cm^3 | Te=100 eV | Ti=100 eV | TF -> QOZ/HNC
[computed] Al, T=100 eV, model=qm
[AA/TF] Al (Z=13) Te=100 eV rho=8.1 g/cc Rws=2.073224 Bohr run_mode=full+ext
[AA/TF full SCF]
iter | d_n | d_v
1 | inf | 5.963e-01
10 | 6.662e-03 | 3.353e-01
[AA/TF external SCF]
iter | d_n | d_v
1 | inf | 1.590e+01
10 | 1.547e-04 | 5.345e-03
[AA/TF] converged=True mu=-5.77104591 Ha Zbar=6.48507712 time=0.214 s
[ion] HNC iterations=11 QOZ=0.823 s HNC=0.019 s
[done] total time=1.064 s
[computed] Al, T=100 eV, model=tf
rho T[eV] dZ(TF-KS) RMSE(g) RMSE(S)
8.10 1.0 1.84369 0.06053 0.07202
8.10 15.0 1.81326 0.04190 0.03435
8.10 50.0 0.66385 0.01169 0.01082
8.10 100.0 -0.19890 0.00280 0.00247
from __future__ import annotations
from concurrent.futures import ProcessPoolExecutor, as_completed
from contextlib import ExitStack
import hashlib
import json
import os
from pathlib import Path
import time
import matplotlib.pyplot as plt
import numpy as np
from otter import PlasmaWorkflowConfig, solve_plasma_workflow
from otter.plotting import grid_figsize, save_figure, style_context
# =============================================================================
# User input
# =============================================================================
RECOMPUTE_WITH_OTTER = True
if os.environ.get("OTTER_RECOMPUTE_AL_QM_TF", "0") == "1":
RECOMPUTE_WITH_OTTER = True
USE_PRECOMPUTED_DATA = not RECOMPUTE_WITH_OTTER
RHO_G_CC = 8.1
TEMPERATURES_EV = (1.0, 15.0, 50.0, 100.0)
ELECTRONIC_MODELS = ("qm", "tf")
# Independent states run serially; each AA keeps its one-worker default.
MAX_STATE_WORKERS = 1
HNC_TOL = 1.0e-6
HNC_CLOSURE_TOL = 1.0e-3
R_RETAIN_MAX_BOHR = 20.0
K_RETAIN_MAX_BOHR_INV = 20.0
# =============================================================================
def repository_root() -> Path:
"""Locate source and reference inputs, independently of numerical outputs."""
candidates = [Path.cwd().resolve(), *Path.cwd().resolve().parents]
source_file = globals().get("__file__")
if source_file is not None:
candidates.extend(Path(source_file).resolve().parents)
for candidate in candidates:
if (candidate / "pyproject.toml").is_file() and (candidate / "src/otter").is_dir():
return candidate
raise FileNotFoundError("Run from an Otter source checkout with its dependencies installed.")
ROOT = repository_root()
PRECOMPUTED_DIR = ROOT / "benchmarks" / "baselines" / "al_qm_tf"
OUTPUT_DIR = (
ROOT / "benchmarks" / "outputs" / "al_qm_tf" / "gallery_recomputed"
)
FIGURE_DIR = ROOT / "benchmarks" / "outputs" / "al_qm_tf" / "figures"
def sha256_file(path: Path) -> str:
digest = hashlib.sha256()
with path.open("rb") as stream:
for block in iter(lambda: stream.read(1024 * 1024), b""):
digest.update(block)
return digest.hexdigest()
def load_npz(path: Path) -> dict[str, np.ndarray]:
"""Load one pickle-free numerical state."""
with np.load(path, allow_pickle=False) as archive:
state = {key: np.asarray(archive[key]) for key in archive.files}
object_keys = [key for key, value in state.items() if value.dtype.hasobject]
if object_keys:
raise TypeError(f"Object arrays are forbidden in {path}: {object_keys}")
return state
def load_precomputed_states() -> list[dict[str, np.ndarray]]:
"""Verify the reviewed manifest and load the four accepted states."""
manifest = json.loads(
(PRECOMPUTED_DIR / "manifest.json").read_text(encoding="utf-8")
)
if manifest.get("benchmark_id") != "al_qm_tf":
raise ValueError("The selected manifest is not the Al QM/TF benchmark.")
states: list[dict[str, np.ndarray]] = []
for record in manifest["states"]:
path = PRECOMPUTED_DIR / str(record["data_file"])
if sha256_file(path) != str(record["data_sha256"]):
raise RuntimeError(f"Checksum mismatch for {path}.")
state = load_npz(path)
if tuple(str(value) for value in state["model_labels"]) != (
"qm",
"tf",
):
raise ValueError(f"Unexpected electronic-model order in {path}.")
states.append(state)
return states
def workflow_config(temperature_ev: float, model: str) -> PlasmaWorkflowConfig:
"""Build the complete public Otter calculation for one model/state."""
model_override = {} if model == "qm" else {"electronic_model": model}
return PlasmaWorkflowConfig(
elements=["Al"],
temperature_ev=float(temperature_ev),
ion_temperature_ev=float(temperature_ev),
rho_g_cc=float(RHO_G_CC),
**model_override,
hnc_tol=float(HNC_TOL),
hnc_closure_transform_tol=float(HNC_CLOSURE_TOL),
)
def solve_model(temperature_ev: float, model: str) -> dict[str, object]:
"""Run AA -> external pseudoatom -> QOZ/HNC for one electronic model."""
started = time.perf_counter()
workflow = solve_plasma_workflow(workflow_config(temperature_ev, model))
elapsed_s = time.perf_counter() - started
electronic = dict(workflow["electronic"]["result"])
ion = dict(workflow["ion"])
ext_status = dict(electronic.get("ext_status", {}))
if electronic.get("stage2_converged") is not True:
raise RuntimeError(f"{model}: full average atom did not converge.")
if ext_status.get("converged") is not True:
raise RuntimeError(f"{model}: external average atom did not converge.")
if ion.get("hnc_converged") is not True:
raise RuntimeError(f"{model}: HNC did not reach a physical root.")
if float(ion["hnc_output_residual"]) > HNC_TOL:
raise RuntimeError(f"{model}: HNC residual exceeds tolerance.")
if float(ion["closure_transform_max_abs"]) > HNC_CLOSURE_TOL:
raise RuntimeError(f"{model}: g/S transform closure exceeds tolerance.")
return {
"model": model,
"elapsed_s": elapsed_s,
"electronic": electronic,
"ion": ion,
}
def trim_grid(
coordinate: np.ndarray,
values: np.ndarray,
maximum: float,
) -> tuple[np.ndarray, np.ndarray]:
coordinate = np.asarray(coordinate, dtype=float)
values = np.asarray(values, dtype=float)
mask = coordinate <= maximum
return coordinate[mask], values[..., mask]
def combine_live_models(
temperature_ev: float,
solved: dict[str, dict[str, object]],
) -> dict[str, np.ndarray]:
"""Convert two live workflows to the same compact arrays used by plotting."""
qm_ion = dict(solved["qm"]["ion"])
r_ion, _ = trim_grid(
qm_ion["r"], qm_ion["gij_r"][0, 0], R_RETAIN_MAX_BOHR
)
k, _ = trim_grid(
qm_ion["k"], qm_ion["sij_k"][0, 0], K_RETAIN_MAX_BOHR_INV
)
payload: dict[str, np.ndarray] = {
"schema_version": np.asarray("otter_gallery_al_qm_tf_v1"),
"rho_g_cc": np.asarray(RHO_G_CC),
"temperature_ev": np.asarray(temperature_ev),
"model_labels": np.asarray(ELECTRONIC_MODELS),
"r_ion_bohr": r_ion,
"k_bohr_inv": k,
}
gii: list[np.ndarray] = []
sii: list[np.ndarray] = []
zbar: list[float] = []
elapsed: list[float] = []
n0: list[float] = []
for model in ELECTRONIC_MODELS:
entry = solved[model]
electronic = dict(entry["electronic"])
ion = dict(entry["ion"])
source_r = np.asarray(ion["r"], dtype=float)
source_k = np.asarray(ion["k"], dtype=float)
gii.append(np.interp(r_ion, source_r, ion["gij_r"][0, 0]))
sii.append(np.interp(k, source_k, ion["sij_k"][0, 0]))
zbar.append(np.asarray(ion["zbar_partition"]).item())
elapsed.append(float(entry["elapsed_s"]))
n0.append(float(electronic["n0"]))
r_e, n_full = trim_grid(
electronic["r"], electronic["n_full"], R_RETAIN_MAX_BOHR
)
_, n_scr = trim_grid(
electronic["r"], electronic["n_scr"], R_RETAIN_MAX_BOHR
)
payload[f"r_{model}_bohr"] = r_e
payload[f"n_full_{model}_bohr3"] = n_full
payload[f"n_scr_{model}_bohr3"] = n_scr
payload["gii_r"] = np.asarray(gii)
payload["sii_k"] = np.asarray(sii)
payload["zbar_partition"] = np.asarray(zbar)
payload["producer_elapsed_s"] = np.asarray(elapsed)
payload["n0_bohr3"] = np.asarray(n0)
return payload
def solve_all_states() -> list[dict[str, np.ndarray]]:
"""Run all eight independent workflows and save compact gallery results."""
jobs = [
(float(temperature), model)
for temperature in TEMPERATURES_EV
for model in ELECTRONIC_MODELS
]
solved: dict[tuple[float, str], dict[str, object]] = {}
with ProcessPoolExecutor(max_workers=MAX_STATE_WORKERS) as pool:
future_map = {
pool.submit(solve_model, temperature, model): (temperature, model)
for temperature, model in jobs
}
for future in as_completed(future_map):
key = future_map[future]
solved[key] = future.result()
print(f"[computed] Al, T={key[0]:g} eV, model={key[1]}")
OUTPUT_DIR.mkdir(parents=True, exist_ok=True)
states: list[dict[str, np.ndarray]] = []
for temperature in TEMPERATURES_EV:
state = combine_live_models(
float(temperature),
{
model: solved[(float(temperature), model)]
for model in ELECTRONIC_MODELS
},
)
token = f"{float(temperature):g}".replace(".", "p")
path = OUTPUT_DIR / f"Al_rho8p1gcc_T{token}eV_qm_tf.npz"
np.savez_compressed(path, **state)
print(f"[saved] {path}")
states.append(state)
return states
def main() -> None:
states = (
load_precomputed_states()
if USE_PRECOMPUTED_DATA
else solve_all_states()
if RECOMPUTE_WITH_OTTER
else []
)
print(
"Using "
+ (
"checksummed, precomputed Otter results."
if USE_PRECOMPUTED_DATA
else "new results calculated directly by this gallery script."
)
)
print(f"{'rho':>6s} {'T[eV]':>7s} {'dZ(TF-KS)':>11s} {'RMSE(g)':>11s} {'RMSE(S)':>11s}")
for state in states:
dz = float(np.diff(np.asarray(state["zbar_partition"], dtype=float))[0])
dg = np.diff(np.asarray(state["gii_r"], dtype=float), axis=0)[0]
ds = np.diff(np.asarray(state["sii_k"], dtype=float), axis=0)[0]
r_metric = np.asarray(state["r_ion_bohr"], dtype=float) <= 12.0
k_metric = np.asarray(state["k_bohr_inv"], dtype=float) <= 6.0
print(
f"{float(state['rho_g_cc']):6.2f} "
f"{float(state['temperature_ev']):7.1f} "
f"{dz:11.5f} "
f"{np.sqrt(np.mean(dg[r_metric]**2)):11.5f} "
f"{np.sqrt(np.mean(ds[k_metric]**2)):11.5f}"
)
# %%
# The density panels use radial shell densities, :math:`4\pi r^2 n(r)`, so
# their signed outer-shell structure remains visible beside the ionic
# observables. Solid lines are KS-DFT and dashed lines are TF.
models = ELECTRONIC_MODELS
labels = {"qm": "KS-DFT", "tf": "Thomas–Fermi"}
plot_style = ExitStack()
plot_style.enter_context(style_context("thesis", palette="bing"))
colors = dict(
zip(models, plt.rcParams["axes.prop_cycle"].by_key()["color"])
)
styles = {"qm": "-", "tf": "--"}
fig_density, density_axes = plt.subplots(
len(states),
2,
figsize=grid_figsize(len(states), 2),
squeeze=False,
)
for row, state in enumerate(states):
for model_index, model in enumerate(models):
r_e = np.asarray(state[f"r_{model}_bohr"], dtype=float)
shell_weight = 4.0 * np.pi * r_e**2
n0 = float(np.asarray(state["n0_bohr3"])[model_index])
density_mask = r_e <= 8.0
screening_mask = r_e <= 12.0
density_axes[row, 0].plot(
r_e[density_mask],
(
shell_weight
* (
np.asarray(
state[f"n_full_{model}_bohr3"],
dtype=float,
)
- n0
)
)[density_mask],
styles[model],
color=colors[model],
label=f"{labels[model]}: full-$n_0$",
)
density_axes[row, 1].plot(
r_e[screening_mask],
(
shell_weight
* np.asarray(state[f"n_scr_{model}_bohr3"], dtype=float)
)[screening_mask],
styles[model],
color=colors[model],
label=labels[model],
)
rho = float(state["rho_g_cc"])
temperature = float(state["temperature_ev"])
density_axes[row, 0].set_ylabel(
rf"{rho:g} g cm$^{{-3}}$, {temperature:g} eV"
+ "\n"
+ r"$4\pi r^2 n(r)$ [Bohr$^{-1}$]"
)
density_axes[row, 0].set_xlim(-0.2, 4.0)
density_axes[row, 1].set_xlim(-0.5, 12.0)
density_titles = (r"$n_{\rm full}-n_0$", "screening density")
for axis, title in zip(density_axes[0], density_titles, strict=True):
axis.set_title(title)
axis.legend(frameon=False)
for axis in density_axes[-1]:
axis.set_xlabel(r"$r$ [Bohr]")
density_axes[0, 1].set_ylabel(
r"$4\pi r^2 n_{\rm scr}$ [Bohr$^{-1}$]"
)
fig_density.suptitle(
"Aluminium electronic structure: KS-DFT versus Thomas–Fermi",
y=0.985,
)
fig_density.tight_layout(rect=(0.0, 0.0, 1.0, 0.96))
# %%
# The same electronic outputs are then propagated through the common
# pseudoatom/QOZ/HNC construction.
fig_ionic, ionic_axes = plt.subplots(
len(states),
2,
figsize=grid_figsize(len(states), 2),
squeeze=False,
)
for row, state in enumerate(states):
r_ion = np.asarray(state["r_ion_bohr"], dtype=float)
k = np.asarray(state["k_bohr_inv"], dtype=float)
for model_index, model in enumerate(models):
ionic_axes[row, 0].plot(
r_ion,
np.asarray(state["gii_r"], dtype=float)[model_index],
styles[model],
color=colors[model],
label=labels[model],
)
ionic_axes[row, 1].plot(
k,
np.asarray(state["sii_k"], dtype=float)[model_index],
styles[model],
color=colors[model],
label=labels[model],
)
rho = float(state["rho_g_cc"])
temperature = float(state["temperature_ev"])
ionic_axes[row, 0].set_ylabel(
rf"{rho:g} g cm$^{{-3}}$, {temperature:g} eV"
+ "\n"
+ r"$g_{ii}(r)$"
)
ionic_axes[row, 0].set_xlim(-0.5, 12.0)
ionic_axes[row, 1].set_xlim(0.0, 6.0)
ionic_axes[row, 1].axhline(1.0, color="0.45", lw=0.8, ls=":")
ionic_axes[0, 0].set_title(r"$g_{ii}(r)$")
ionic_axes[0, 1].set_title(r"$S_{ii}(k)$")
ionic_axes[0, 0].legend(frameon=False)
ionic_axes[0, 1].legend(frameon=False)
ionic_axes[-1, 0].set_xlabel(r"$r$ [Bohr]")
ionic_axes[-1, 1].set_xlabel(r"$k$ [Bohr$^{-1}$]")
ionic_axes[0, 1].set_ylabel(r"$S_{ii}$")
fig_ionic.suptitle(
"Aluminium ionic structure: KS-DFT versus Thomas–Fermi",
y=0.985,
)
fig_ionic.tight_layout(rect=(0.0, 0.0, 1.0, 0.96))
save_figure(
fig_density,
FIGURE_DIR / "al_qm_tf_electronic_structure",
close=False,
)
save_figure(
fig_ionic,
FIGURE_DIR / "al_qm_tf_ionic_structure",
close=False,
)
plot_style.close()
plt.show()
if __name__ == "__main__":
main()
