CH1.36: multicomponent electronic-to-ionic workflow
This example calculates the electronic and ionic structure of CH1.36:
\[\mathrm{AA}
\rightarrow \{n_{\rm C}^{\rm scr}(k),n_{\rm H}^{\rm scr}(k)\}
\rightarrow V_{ab}(k)
\rightarrow \mathrm{QOZ/HNC}
\rightarrow \{g_{ab}(r),S_{ab}(k)\}.\]
The full/external pseudoatom and QOZ construction follow Starrett and Saumon [2014]; the multicomponent equations follow Starrett et al. [2014]; and the finite-temperature jellium local-field correction follows Chabrier [1990].
Electronic data access
The electronic result contains one AA dictionary per species:
for entry in workflow["electronic"]["species"]:
aa = entry["result"]
print(entry["element"], aa["zbar_partition"], aa["zstar"])
Each AA retains its native radial grid. This species-list interface applies to any number of components. Field definitions, array dimensions and version compatibility are documented in Workflow results and portable NPZ files.
Reproduction
From the root of the complete Otter checkout, using Poetry, run:
poetry run python docs/examples/plot_ch136_mixture_workflow.py
Downloads are optional: .ipynb launches this repository script; .zip
contains both formats. See Reproducing examples and benchmarks for setup.
The script calculates this state and saves numerical results and figures locally. No bundled Otter NPZ is required.

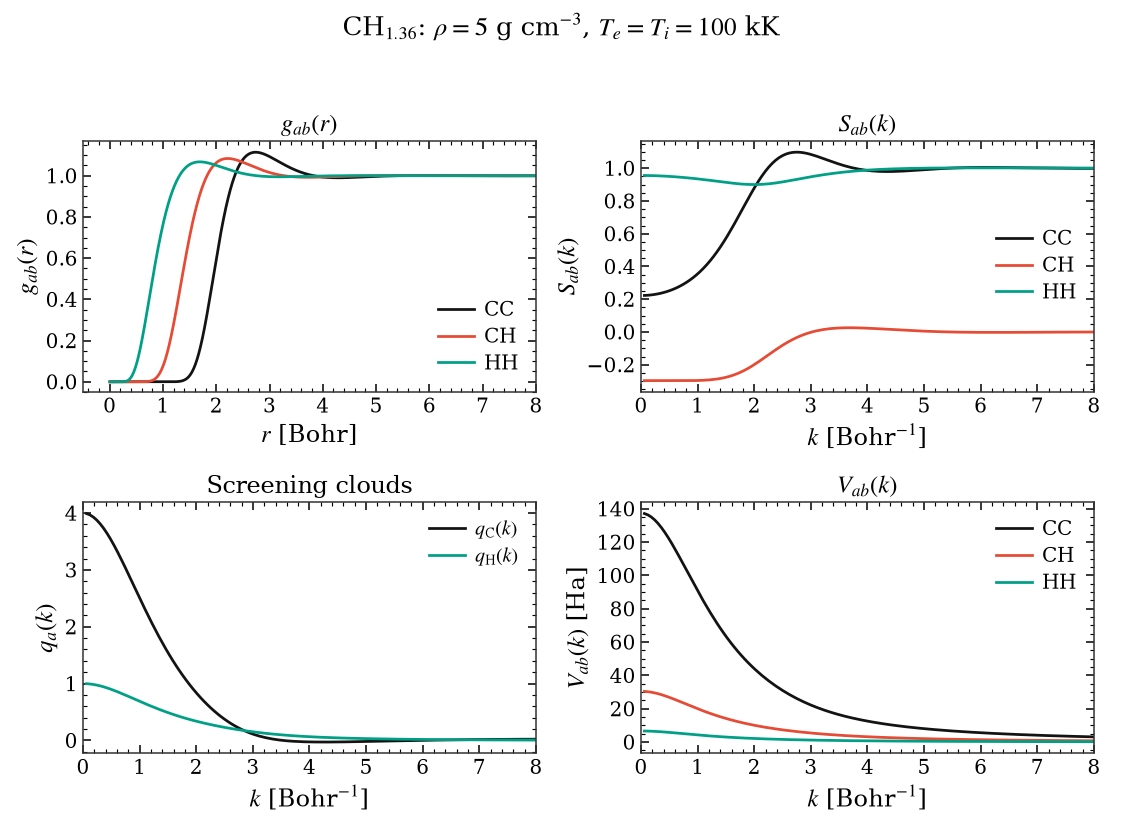

Recorded results
The figures and output below are from the recorded validation run; running the source recalculates them with the installed Otter version.
Recorded terminal output
Otter 0.4.1
[run] C:1 H:1.36 | rho=5 g/cm^3 | Te=8.61733 eV | Ti=8.61733 eV | QM -> QOZ/HNC
[mixture] iter= 1 max|dmu|=6.127e-01 Ha
[mixture] iter= 2 max|dmu|=2.664e-01 Ha
[mixture] observed binary sign-change bracket: theta in [0.588395, 1.484275]
[mixture] iter= 3 max|dmu|=1.885e-02 Ha
[mixture] observed binary sign-change bracket: theta in [0.859866, 1.484275]
[mixture] iter= 4 max|dmu|=2.487e-04 Ha
[mixture] observed binary sign-change bracket: theta in [0.879920, 1.484275]
[mixture] iter= 5 max|dmu|=2.445e-07 Ha
[mixture] observed binary sign-change bracket: theta in [0.880187, 1.484275]
[AA] C (Z=6) | Rws=1.716904 a0 | full + external
[AA] H (Z=1) | Rws=1.155615 a0 | full + external
[AA] converged=True | mu=0.96529341 Ha | Zbar=1.00000000 | time=8.157 s
Bound levels
none
[AA] converged=True | mu=0.96529366 Ha | Zbar=4.00003176 | time=9.085 s
Bound levels
level | E [Ha] | f_FD
------+------------+----------
1s | -8.64210 | 1.00000
[mixture] mu=0.96529354 Ha
[mixture] C: Rws=1.716904 Bohr Zbar=4.00003176
[mixture] H: Rws=1.155615 Bohr Zbar=1.00000000
[ion] HNC iterations=4 QOZ=0.809 s HNC=0.559 s
[done] total time=47.685 s
CH1.36 rho=5 g/cc Te=Ti=100 kK (8.61733326 eV)
common mu = 0.96529354 Ha; max|Delta mu| = 2.445e-07 Ha
HNC residual = 1.248e-11; g/S closure = 1.426e-13; min eig(S) = 0.120106
sp mu[Ha] Zbar(AA) Zbar(part) Zbar(QOZ) Qnative Qdst raw Qdst used scale
C 0.96529366 4.0000318 4.0000290 4.0000290 4.0000609 4.0000724 4.0000290 0.9999891
H 0.96529341 1.0000000 1.0000000 1.0000000 1.0002407 1.0002431 1.0000000 0.9997570
Calculation wall time = 47.68 s
from __future__ import annotations
import hashlib
import json
import os
from pathlib import Path
import time
from typing import Any
import matplotlib.pyplot as plt
import numpy as np
from otter import PlasmaWorkflowConfig, solve_plasma_workflow
from otter.numerics.constants import KELVIN_TO_EV
from otter.plotting import PAIR_COLORS, grid_figsize, save_figure, style_context
# =============================================================================
# User input
# =============================================================================
RECOMPUTE_WITH_OTTER = True
if os.environ.get("OTTER_RECOMPUTE_CH136_EXAMPLE", "0") == "1":
RECOMPUTE_WITH_OTTER = True
ELEMENTS = ("C", "H")
COUNTS = (1.0, 1.36)
RHO_G_CC = 5.0
TEMPERATURE_K = 100_000.0
TE_EV = TEMPERATURE_K * KELVIN_TO_EV
TI_EV = TE_EV
COMMON_MU_TOL_HA = 1.0e-4
HNC_TOL = 1.0e-5
HNC_CLOSURE_TOL = 1.0e-4
# =============================================================================
SCHEMA = "otter_ch136_mixture_workflow_v1"
PAIR_ORDER = (("CC", 0, 0), ("CH", 0, 1), ("HH", 1, 1))
def repository_root() -> Path:
"""Locate source and reference inputs, independently of numerical outputs."""
candidates = [Path.cwd().resolve(), *Path.cwd().resolve().parents]
source_file = globals().get("__file__")
if source_file is not None:
candidates.extend(Path(source_file).resolve().parents)
for candidate in candidates:
if (candidate / "pyproject.toml").is_file() and (candidate / "src/otter").is_dir():
return candidate
raise FileNotFoundError("Run from an Otter source checkout with its dependencies installed.")
ROOT = repository_root()
BASELINE_DIR = (
ROOT / "benchmarks" / "baselines" / "ch136_mixture_workflow_100kk"
)
OUTPUT_DIR = (
ROOT / "benchmarks" / "outputs" / "ch136_mixture_workflow_100kk"
)
FIGURE_DIR = OUTPUT_DIR / "figures"
RECOMPUTED_PATH = OUTPUT_DIR / "recomputed" / "CH1p36_5gcc_100kK.npz"
def sha256_file(path: Path) -> str:
"""Return a streaming SHA-256 checksum."""
digest = hashlib.sha256()
with path.open("rb") as stream:
for block in iter(lambda: stream.read(1024 * 1024), b""):
digest.update(block)
return digest.hexdigest()
def workflow_config() -> PlasmaWorkflowConfig:
"""Return the complete public configuration used on this page."""
return PlasmaWorkflowConfig(
elements=list(ELEMENTS),
counts=list(COUNTS),
temperature_ev=TE_EV,
ion_temperature_ev=TI_EV,
rho_g_cc=RHO_G_CC,
hnc_tol=HNC_TOL,
show_mu_progress=True,
)
def strict_audit(
workflow: dict[str, Any],
) -> tuple[dict[str, Any], dict[str, Any], list[dict[str, Any]]]:
"""Reject any unconverged common-mu, AA, external-AA, or HNC result."""
electronic_block = dict(workflow["electronic"])
if str(electronic_block["kind"]) != "mixture":
raise RuntimeError("A two-species mixture result is required.")
electronic = dict(electronic_block["result"])
meta = dict(electronic.get("meta", {}))
if not bool(meta.get("root_success", False)):
raise RuntimeError("The common-mu root did not converge.")
if float(meta.get("mu_residual_max_ha", np.inf)) > COMMON_MU_TOL_HA:
raise RuntimeError("The initial common-mu residual exceeds tolerance.")
if not bool(meta.get("final_mu_root_success", False)):
raise RuntimeError("The full+external rerun lost common-mu closure.")
if (
float(meta.get("final_mu_residual_max_ha", np.inf))
> COMMON_MU_TOL_HA
):
raise RuntimeError("The final common-mu residual exceeds tolerance.")
species = [dict(entry) for entry in electronic_block["species"]]
if tuple(str(entry["element"]) for entry in species) != ELEMENTS:
raise RuntimeError("Unexpected species order.")
for entry in species:
symbol = str(entry["element"])
result = dict(entry["result"])
if result.get("stage2_converged") is not True:
raise RuntimeError(f"{symbol}: full AA stage 2 did not converge.")
if str(result.get("threshold_state_status", "")).lower() == "unresolved":
raise RuntimeError(f"{symbol}: unresolved threshold state.")
if dict(result.get("ext_status", {})).get("converged") is not True:
raise RuntimeError(f"{symbol}: external AA did not converge.")
ion = dict(workflow["ion"])
if ion.get("hnc_converged") is not True:
raise RuntimeError("The mixture HNC did not converge.")
if float(ion["hnc_output_residual"]) > HNC_TOL:
raise RuntimeError("The HNC fixed-point residual exceeds tolerance.")
if float(ion["closure_transform_max_abs"]) > HNC_CLOSURE_TOL:
raise RuntimeError("The finite-lattice g/S closure audit failed.")
return electronic, ion, species
def result_arrays(workflow: dict[str, Any], elapsed_s: float) -> dict[str, np.ndarray]:
"""Convert one strictly accepted workflow into a pickle-free archive."""
electronic, ion, species = strict_audit(workflow)
meta = dict(electronic["meta"])
charge = dict(ion["charge_fix"])
mu_species = np.asarray(
[float(dict(entry["result"])["mu"]) for entry in species], dtype=float
)
arrays = {
"schema_version": np.asarray(SCHEMA),
"storage_profile": np.asarray("gallery_analysis"),
"species_symbols": np.asarray(ELEMENTS),
"species_counts": np.asarray(COUNTS, dtype=float),
"rho_g_cc": np.asarray(RHO_G_CC),
"temperature_k": np.asarray(TEMPERATURE_K),
"temperature_ev": np.asarray(TE_EV),
"r_bohr": np.asarray(ion["r"], dtype=float),
"k_bohr_inv": np.asarray(ion["k"], dtype=float),
"gij_r": np.asarray(ion["gij_r"], dtype=float),
"sij_k": np.asarray(ion["sij_k"], dtype=float),
"q_k": np.asarray(ion["n_scr_k"], dtype=float),
"vij_k": np.asarray(ion["vij_k"], dtype=float),
"mu_species_ha": mu_species,
"mu_common_ha": np.asarray(float(np.mean(mu_species))),
"root_residual_initial_ha": np.asarray(
float(meta["mu_residual_max_ha"])
),
"root_residual_final_ha": np.asarray(
float(meta["final_mu_residual_max_ha"])
),
"zbar_partition": np.asarray(ion["zbar_partition"], dtype=float),
"zbar_qoz": np.asarray(ion["zbar_qoz"], dtype=float),
"zbar_aa_ws": np.asarray(ion["zbar_aa_ws"], dtype=float),
"q_scr_native_raw": np.asarray(
charge["q_scr_native_raw"], dtype=float
),
"q_scr_dst_raw": np.asarray(charge["q_scr_dst_raw"], dtype=float),
"q_scr_dst_used": np.asarray(charge["q_scr_dst_used"], dtype=float),
"q_scr_scale_factor": np.asarray(
charge["scale_factor"], dtype=float
),
"hnc_output_residual": np.asarray(
float(ion["hnc_output_residual"])
),
"hnc_closure_mismatch": np.asarray(
float(ion["closure_transform_max_abs"])
),
"hnc_s_min": np.asarray(float(ion["hnc_s_min"])),
"hnc_s_max": np.asarray(float(ion["hnc_s_max"])),
"producer_elapsed_s": np.asarray(float(elapsed_s)),
}
if any(value.dtype.hasobject for value in arrays.values()):
raise TypeError("Gallery archives cannot contain object arrays.")
return arrays
def calculate_with_otter() -> dict[str, np.ndarray]:
"""Run and save the complete calculation defined above."""
started = time.perf_counter()
workflow = solve_plasma_workflow(workflow_config())
elapsed_s = time.perf_counter() - started
arrays = result_arrays(workflow, elapsed_s)
RECOMPUTED_PATH.parent.mkdir(parents=True, exist_ok=True)
np.savez_compressed(RECOMPUTED_PATH, **arrays)
print(f"[saved] {RECOMPUTED_PATH}")
return arrays
def load_reviewed_result() -> dict[str, np.ndarray]:
"""Verify and load the reviewed current-Otter result."""
manifest = json.loads(
(BASELINE_DIR / "manifest.json").read_text(encoding="utf-8")
)
if manifest.get("schema_version") != "otter_example_manifest_v1":
raise ValueError("Unsupported mixture-example manifest.")
record = dict(manifest["state"])
path = BASELINE_DIR / str(record["data_file"])
if sha256_file(path) != str(record["data_sha256"]):
raise RuntimeError(f"Checksum mismatch for {path}.")
with np.load(path, allow_pickle=False) as archive:
arrays = {key: np.asarray(archive[key]) for key in archive.files}
if str(arrays["schema_version"].item()) != SCHEMA:
raise ValueError("Unsupported mixture-example archive.")
if any(value.dtype.hasobject for value in arrays.values()):
raise TypeError("Object arrays are forbidden in gallery archives.")
return arrays
def main() -> None:
result = (
calculate_with_otter() if RECOMPUTE_WITH_OTTER else load_reviewed_result()
)
symbols = tuple(str(value) for value in result["species_symbols"])
mu = np.asarray(result["mu_species_ha"], dtype=float)
zbar_partition = np.asarray(result["zbar_partition"], dtype=float)
zbar_qoz = np.asarray(result["zbar_qoz"], dtype=float)
zbar_aa = np.asarray(result["zbar_aa_ws"], dtype=float)
q_native = np.asarray(result["q_scr_native_raw"], dtype=float)
q_dst_raw = np.asarray(result["q_scr_dst_raw"], dtype=float)
q_dst_used = np.asarray(result["q_scr_dst_used"], dtype=float)
q_scale = np.asarray(result["q_scr_scale_factor"], dtype=float)
print(
"CH1.36 rho=5 g/cc Te=Ti=100 kK "
f"({float(result['temperature_ev']):.8f} eV)"
)
print(
f"common mu = {float(result['mu_common_ha']):.8f} Ha; "
f"max|Delta mu| = {float(result['root_residual_final_ha']):.3e} Ha"
)
print(
f"HNC residual = {float(result['hnc_output_residual']):.3e}; "
f"g/S closure = {float(result['hnc_closure_mismatch']):.3e}; "
f"min eig(S) = {float(result['hnc_s_min']):.6f}"
)
print(
f"{'sp':>3s} {'mu[Ha]':>12s} {'Zbar(AA)':>11s} "
f"{'Zbar(part)':>12s} {'Zbar(QOZ)':>11s} "
f"{'Qnative':>11s} {'Qdst raw':>11s} {'Qdst used':>11s} {'scale':>10s}"
)
for index, symbol in enumerate(symbols):
print(
f"{symbol:>3s} {mu[index]:12.8f} {zbar_aa[index]:11.7f} "
f"{zbar_partition[index]:12.7f} {zbar_qoz[index]:11.7f} "
f"{q_native[index]:11.7f} {q_dst_raw[index]:11.7f} "
f"{q_dst_used[index]:11.7f} {q_scale[index]:10.7f}"
)
print(f"Calculation wall time = {float(result['producer_elapsed_s']):.2f} s")
# %%
# Pair structure and pseudoatom inputs
# ------------------------------------
#
# The three pair channels use one stable colour assignment throughout. The
# Ashcroft--Langreth convention used for ``S_ab`` is recorded by the public
# workflow. The charge table above distinguishes the native pseudoatom
# integral from the DST-lattice charge actually used by QOZ.
r = np.asarray(result["r_bohr"], dtype=float)
k = np.asarray(result["k_bohr_inv"], dtype=float)
gij = np.asarray(result["gij_r"], dtype=float)
sij = np.asarray(result["sij_k"], dtype=float)
q_k = np.asarray(result["q_k"], dtype=float)
vij_k = np.asarray(result["vij_k"], dtype=float)
with style_context("thesis", palette="bing"):
fig, axes = plt.subplots(2, 2, figsize=grid_figsize(2, 2))
for label, i, j in PAIR_ORDER:
axes[0, 0].plot(
r, gij[i, j], color=PAIR_COLORS[label], label=label
)
axes[0, 1].plot(
k, sij[i, j], color=PAIR_COLORS[label], label=label
)
axes[1, 1].plot(
k, vij_k[i, j], color=PAIR_COLORS[label], label=label
)
axes[1, 0].plot(
k, q_k[0], color=PAIR_COLORS["CC"], label=r"$n_{\rm C}^{\rm scr}(k)$"
)
axes[1, 0].plot(
k, q_k[1], color=PAIR_COLORS["HH"], label=r"$n_{\rm H}^{\rm scr}(k)$"
)
axes[0, 0].set(
title=r"$g_{ab}(r)$",
xlabel=r"$r$ [Bohr]",
ylabel=r"$g_{ab}(r)$",
xlim=(-0.5, 8.0),
ylim=(-0.05, None),
)
axes[0, 1].set(
title=r"$S_{ab}(k)$",
xlabel=r"$k$ [Bohr$^{-1}$]",
ylabel=r"$S_{ab}(k)$",
xlim=(0.0, 8.0),
)
axes[1, 0].set(
title="Screening clouds",
xlabel=r"$k$ [Bohr$^{-1}$]",
ylabel=r"$n_a^{\rm scr}(k)$",
xlim=(0.0, 8.0),
)
axes[1, 1].set(
title=r"$V_{ab}(k)$",
xlabel=r"$k$ [Bohr$^{-1}$]",
ylabel=r"$V_{ab}(k)$ [Ha]",
xlim=(0.0, 8.0),
)
for axis in axes.flat:
axis.legend(frameon=False)
fig.suptitle(
r"CH$_{1.36}$: $\rho=5$ g cm$^{-3}$, "
r"$T_e=T_i=100$ kK",
y=0.985,
)
fig.tight_layout(rect=(0.0, 0.0, 1.0, 0.955))
save_figure(
fig,
FIGURE_DIR / "ch136_mixture_full_workflow",
close=False,
)
plt.show()
if __name__ == "__main__":
main()
