Experimental IS/SC feedback for aluminium
This example compares the ion-sphere (IS) construction with Otter’s experimental self-consistent (SC) average-atom/QOZ feedback for aluminium at \(\rho=8.1\ {\rm g\,cm^{-3}}\) and \(T_e=T_i=15\ {\rm eV}\). Both orbital Kohn–Sham DFT (KS-DFT) and finite-temperature Thomas–Fermi (TF) electrons are shown.
The SC loop is based on Sec. 2.4 and Eqs. (19)–(20) of Starrett and Saumon [2014] (doi: 10.1016/j.hedp.2013.12.001). It feeds the ion structure and ion–electron correlation potential back into the electronic calculation while keeping the converged IS chemical potential fixed. Otter labels this path experimental because validation across a broader state space is still in progress.
The refreshed results use zero-tail shallow-state matching by default in QM SC and adaptive full-AA precision in the final SC iterations. Explicit user overrides are retained. Outer acceptance also checks the current, unmixed correlation- potential residual. This improves the accuracy of the coupled iteration; it does not change the IS initial state or the physical feedback equations.
Reproduction
From the root of the complete Otter checkout, using Poetry, run:
poetry run python docs/examples/plot_al_is_sc_comparison.py
Downloads are optional: .ipynb launches this repository script; .zip
contains both formats. See Reproducing examples and benchmarks for setup.
The script calculates the states from their input parameters and then plots the results. No bundled Otter NPZ is required. Numerical outputs are written locally; literature reference tables remain inputs to the comparison.
Recorded results

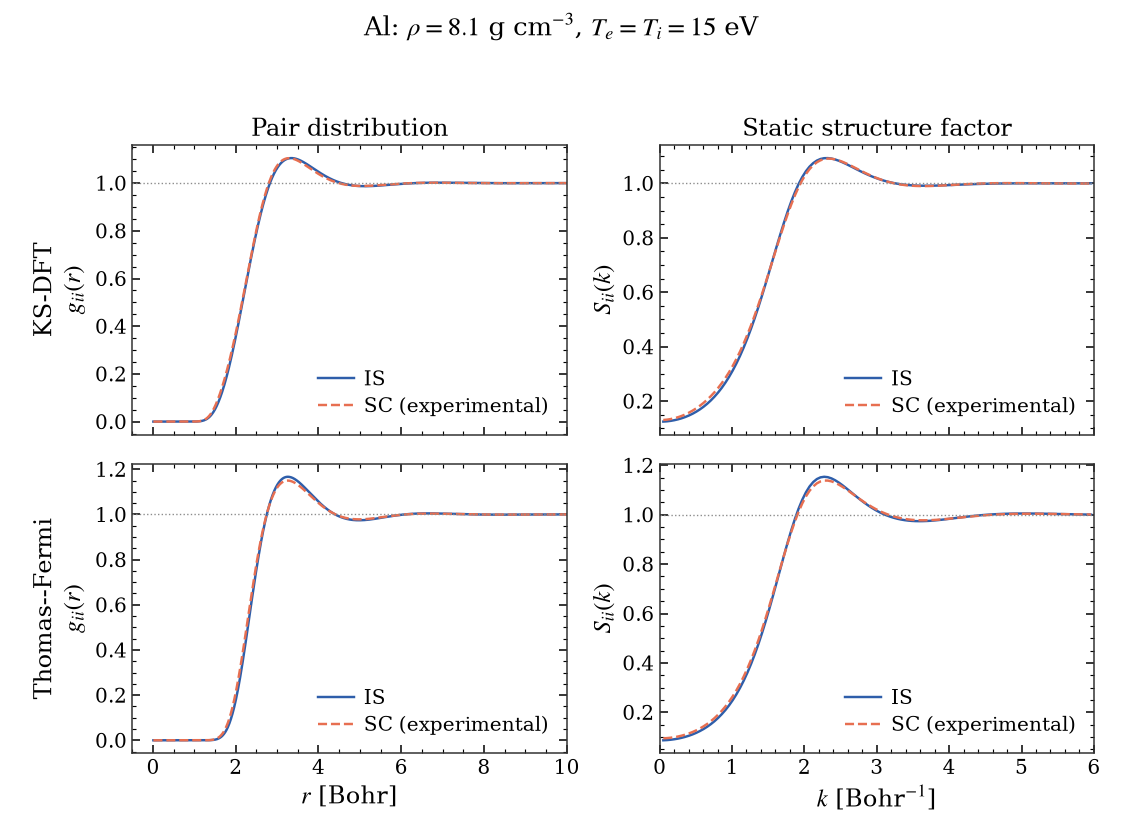

The figures and output below are from the recorded validation run; running the source recalculates them with the installed Otter version. Both the timing plot and terminal report total wall time. For SC this includes the initial IS calculation plus the SC feedback stage.
Recorded terminal output
Al: rho=8.1 g/cc, Te=Ti=15 eV
SC status: experimental; Starrett--Saumon (2014), Sec. 2.4, Eqs. (19)--(20).
model path mu [Ha] Zbar HNC residual total wall time [s]
---------------------------------------------------------------------------------------
KS-DFT IS 0.61838663 3.162604 2.560e-05 21.32
KS-DFT SC 0.61838663 3.121100 1.296e-05 110.70
Thomas--Fermi IS 0.69292041 4.975863 5.391e-06 1.10
Thomas--Fermi SC 0.69292041 4.765113 8.344e-07 9.65

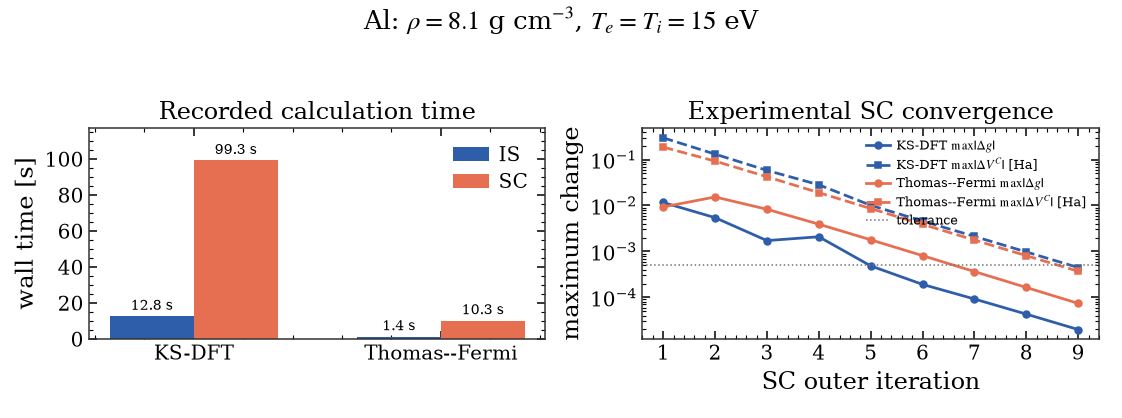

SC total = initial IS calculation + SC feedback stage.

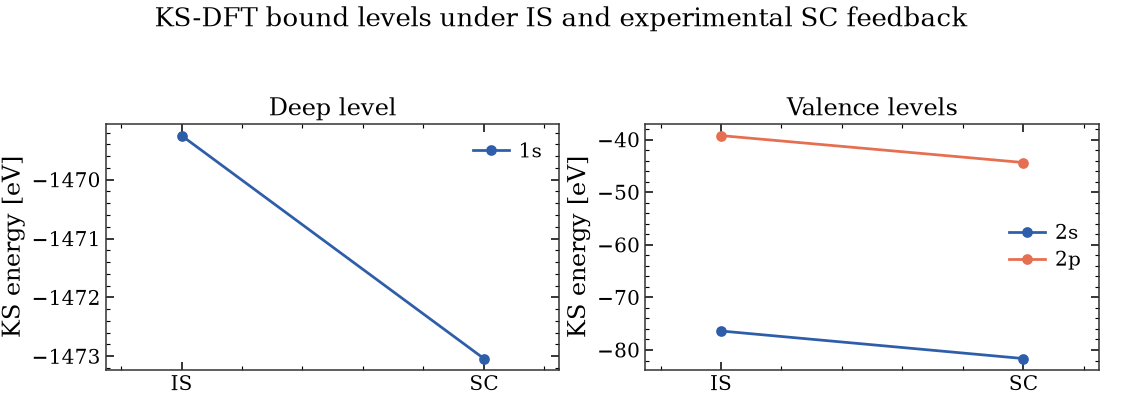

KS-DFT finite bound levels
level E_IS [Ha] E_SC [Ha] FD_IS FD_SC
---------------------------------------------------------
1s -53.995320 -54.137834 1.000000 1.000000
2s -2.812971 -3.003337 0.998024 0.998600
2p -1.447095 -1.633291 0.976955 0.983451
Thomas--Fermi is a semiclassical density model and has no discrete KS-level table.
from __future__ import annotations
from concurrent.futures import ProcessPoolExecutor, as_completed
import hashlib
import json
import os
from pathlib import Path
import time
from typing import Any
import matplotlib.pyplot as plt
import numpy as np
from otter import PlasmaWorkflowConfig, solve_plasma_workflow
from otter.experimental import SCFeedbackConfig, solve_sc_feedback_workflow
from otter.numerics.constants import HA_TO_EV
from otter.plotting import (
MODEL_STYLES,
PALETTES,
grid_figsize,
save_figure,
style_context,
)
User controls
RECOMPUTE_WITH_OTTER is the only switch required for a normal run.
Two independent electronic models may be evaluated concurrently. Reduce
the state-worker count on a small machine.
RECOMPUTE_WITH_OTTER = True
if os.environ.get("OTTER_RECOMPUTE_AL_IS_SC", "0") == "1":
RECOMPUTE_WITH_OTTER = True
RECOMPUTE_MODEL_WORKERS = 1
ELEMENT = "Al"
RHO_G_CC = 8.1
TE_EV = 15.0
TI_EV = 15.0
MODELS = ("qm", "tf")
MODEL_DISPLAY_LABELS = ("KS-DFT", "Thomas--Fermi")
STRUCTURES = ("is", "sc")
HNC_CLOSURE_TOL = 2.5e-3
R_RETAIN_MAX_BOHR = 20.0
K_RETAIN_MAX_BOHR_INV = 20.0
# Use the same validated outer-SC protocol as the electronic-level benchmark.
SC_CONTROLS = SCFeedbackConfig(
max_outer=16,
v_corr_mix=0.5,
)
SCHEMA = "otter_al_is_sc_comparison_v1"
def _repository_root() -> Path:
"""Locate source and reference inputs, independently of numerical outputs."""
candidates = [Path.cwd().resolve(), *Path.cwd().resolve().parents]
source_file = globals().get("__file__")
if source_file is not None:
candidates.extend(Path(source_file).resolve().parents)
for candidate in candidates:
if (candidate / "pyproject.toml").is_file() and (candidate / "src/otter").is_dir():
return candidate
raise FileNotFoundError("Run from an Otter source checkout with its dependencies installed.")
ROOT = _repository_root()
BASELINE_DIR = ROOT / "benchmarks" / "baselines" / "al_is_sc_comparison"
MANIFEST_PATH = BASELINE_DIR / "manifest.json"
OUTPUT_DIR = ROOT / "benchmarks" / "outputs" / "al_is_sc_comparison"
CANDIDATE_PATH = (
OUTPUT_DIR
/ "recomputed"
/ "Al_rho8p1gcc_Te15eV_Ti15eV_qm_tf_is_sc.npz"
)
FIGURE_DIR = OUTPUT_DIR / "figures"
def _sha256(path: Path) -> str:
digest = hashlib.sha256()
with path.open("rb") as stream:
for block in iter(lambda: stream.read(1024 * 1024), b""):
digest.update(block)
return digest.hexdigest()
def workflow_config(model: str) -> PlasmaWorkflowConfig:
"""Return the complete IS workflow used to initialise the SC loop."""
model_key = str(model).strip().lower()
if model_key not in MODELS:
raise ValueError(f"model must be one of {MODELS}, got {model!r}.")
model_override = {} if model_key == "qm" else {"electronic_model": model_key}
return PlasmaWorkflowConfig(
elements=[ELEMENT],
temperature_ev=TE_EV,
ion_temperature_ev=TI_EV,
rho_g_cc=RHO_G_CC,
**model_override,
hnc_closure_transform_tol=HNC_CLOSURE_TOL,
)
def _finite_bound_levels(electronic: dict[str, Any]) -> dict[str, np.ndarray]:
"""Flatten finite negative-energy KS levels into numeric arrays."""
energies = np.asarray(
electronic.get("bound_energy_ha", np.empty((0, 0))),
dtype=float,
)
l_values = np.asarray(
electronic.get("bound_l_list", np.arange(energies.shape[0])),
dtype=int,
)
fd = np.asarray(
electronic.get("bound_fd", np.zeros_like(energies)),
dtype=float,
)
occupations = np.asarray(
electronic.get("bound_occ_deg_fd", np.zeros_like(energies)),
dtype=float,
)
records: list[tuple[int, int, float, float, float]] = []
for l_index in range(energies.shape[0]):
for n_index in range(energies.shape[1]):
energy = float(energies[l_index, n_index])
if np.isfinite(energy) and energy < 0.0:
records.append(
(
int(l_values[l_index]),
int(n_index + 1),
energy,
float(fd[l_index, n_index]),
float(occupations[l_index, n_index]),
)
)
if not records:
return {
"bound_l": np.empty(0, dtype=int),
"bound_n_index": np.empty(0, dtype=int),
"bound_energy_ha": np.empty(0),
"bound_fd": np.empty(0),
"bound_occ_deg_fd": np.empty(0),
}
values = np.asarray(records, dtype=float)
return {
"bound_l": values[:, 0].astype(int),
"bound_n_index": values[:, 1].astype(int),
"bound_energy_ha": values[:, 2],
"bound_fd": values[:, 3],
"bound_occ_deg_fd": values[:, 4],
}
def _extract_path(workflow: dict[str, Any]) -> dict[str, Any]:
"""Extract the quantities retained by this example."""
electronic = dict(workflow["electronic"]["result"])
ion = dict(workflow["ion"])
r = np.asarray(ion["r"], dtype=float)
k = np.asarray(ion["k"], dtype=float)
r_mask = r <= R_RETAIN_MAX_BOHR
k_mask = k <= K_RETAIN_MAX_BOHR_INV
return {
"r": r[r_mask],
"k": k[k_mask],
"gii": np.asarray(ion["gij_r"][0, 0], dtype=float)[r_mask],
"sii": np.asarray(ion["sij_k"][0, 0], dtype=float)[k_mask],
"mu": float(electronic["mu"]),
"zbar": np.asarray(ion["zbar_partition"]).item(),
"hnc_residual": float(ion["hnc_output_residual"]),
"levels": _finite_bound_levels(electronic),
}
def _solve_model(model: str) -> dict[str, Any]:
"""Calculate one IS result and continue it to experimental SC."""
config = workflow_config(model)
started = time.perf_counter()
is_workflow = solve_plasma_workflow(config)
is_elapsed_s = time.perf_counter() - started
started = time.perf_counter()
sc_workflow = solve_sc_feedback_workflow(
config,
is_workflow,
feedback_cfg=SC_CONTROLS,
)
sc_extension_elapsed_s = time.perf_counter() - started
feedback = dict(sc_workflow["sc_feedback"])
history = list(feedback["history"])
return {
"is": _extract_path(is_workflow),
"sc": _extract_path(sc_workflow),
"is_elapsed_s": float(is_elapsed_s),
"sc_extension_elapsed_s": float(sc_extension_elapsed_s),
"sc_total_elapsed_s": float(
is_elapsed_s + sc_extension_elapsed_s
),
"sc_converged": bool(feedback["converged"]),
"sc_iterations": int(feedback["iterations"]),
"fixed_is_mu_ha": float(feedback["fixed_is_mu_ha"]),
"history_iteration": np.asarray(
[int(item["iteration"]) for item in history],
dtype=int,
),
"history_max_g_change": np.asarray(
[float(item["max_g_change"]) for item in history],
dtype=float,
),
"history_max_v_corr_change_ha": np.asarray(
[float(item["max_v_corr_change_ha"]) for item in history],
dtype=float,
),
"history_max_v_corr_residual_ha": np.asarray(
[float(item["max_v_corr_residual_ha"]) for item in history],
),
"history_inner_full_refined": np.asarray(
[bool(item["inner_full_refined"]) for item in history],
),
}
def _interpolate(
target: np.ndarray,
source: np.ndarray,
values: np.ndarray,
) -> np.ndarray:
return np.interp(
np.asarray(target, dtype=float),
np.asarray(source, dtype=float),
np.asarray(values, dtype=float),
)
def _pack_state(by_model: dict[str, dict[str, Any]]) -> dict[str, np.ndarray]:
"""Pack recomputed results in the reviewed, pickle-free schema."""
r = np.asarray(by_model["qm"]["is"]["r"], dtype=float)
k = np.asarray(by_model["qm"]["is"]["k"], dtype=float)
gii = np.empty((len(MODELS), len(STRUCTURES), r.size), dtype=float)
sii = np.empty((len(MODELS), len(STRUCTURES), k.size), dtype=float)
mu = np.empty((len(MODELS), len(STRUCTURES)), dtype=float)
zbar = np.empty_like(mu)
hnc_residual = np.empty_like(mu)
for model_index, model in enumerate(MODELS):
for structure_index, structure in enumerate(STRUCTURES):
path = by_model[model][structure]
gii[model_index, structure_index] = _interpolate(
r, path["r"], path["gii"]
)
sii[model_index, structure_index] = _interpolate(
k, path["k"], path["sii"]
)
mu[model_index, structure_index] = float(path["mu"])
zbar[model_index, structure_index] = float(path["zbar"])
hnc_residual[model_index, structure_index] = float(
path["hnc_residual"]
)
payload: dict[str, np.ndarray] = {
"schema_version": np.asarray(SCHEMA),
"example_id": np.asarray("al_is_sc_comparison"),
"storage_profile": np.asarray("gallery_analysis"),
"element_symbol": np.asarray(ELEMENT),
"rho_g_cc": np.asarray(RHO_G_CC),
"te_ev": np.asarray(TE_EV),
"ti_ev": np.asarray(TI_EV),
"model_labels": np.asarray(MODELS),
"model_display_labels": np.asarray(MODEL_DISPLAY_LABELS),
"structure_labels": np.asarray(STRUCTURES),
"sc_status": np.asarray("experimental"),
"sc_reference": np.asarray(
"Starrett and Saumon 2014 Sec. 2.4 Eqs. (19)-(20)"
),
"r_bohr": r,
"k_bohr_inv": k,
"gii_r": gii,
"sii_k": sii,
"mu_ha": mu,
"zbar_partition": zbar,
"hnc_residual": hnc_residual,
"is_elapsed_s": np.asarray(
[by_model[model]["is_elapsed_s"] for model in MODELS]
),
"sc_extension_elapsed_s": np.asarray(
[
by_model[model]["sc_extension_elapsed_s"]
for model in MODELS
]
),
"sc_total_elapsed_s": np.asarray(
[by_model[model]["sc_total_elapsed_s"] for model in MODELS]
),
"sc_converged": np.asarray(
[by_model[model]["sc_converged"] for model in MODELS],
dtype=bool,
),
"sc_iterations": np.asarray(
[by_model[model]["sc_iterations"] for model in MODELS],
dtype=int,
),
"fixed_is_mu_ha": np.asarray(
[by_model[model]["fixed_is_mu_ha"] for model in MODELS]
),
"tf_discrete_ks_levels_defined": np.asarray(False),
}
for model in MODELS:
for structure in STRUCTURES:
levels = by_model[model][structure]["levels"]
for name, values in levels.items():
payload[f"{model}_{structure}_{name}"] = np.asarray(values)
payload[f"{model}_sc_history_iteration"] = np.asarray(
by_model[model]["history_iteration"]
)
payload[f"{model}_sc_history_max_g_change"] = np.asarray(
by_model[model]["history_max_g_change"]
)
payload[f"{model}_sc_history_max_v_corr_change_ha"] = np.asarray(
by_model[model]["history_max_v_corr_change_ha"]
)
for field in ("history_max_v_corr_residual_ha", "history_inner_full_refined"):
payload[f"{model}_sc_{field}"] = np.asarray(by_model[model][field])
return payload
def recompute_state() -> dict[str, np.ndarray]:
"""Run the public Otter API and stage a fresh local candidate."""
workers = max(1, min(int(RECOMPUTE_MODEL_WORKERS), len(MODELS)))
solved: dict[str, dict[str, Any]] = {}
if workers == 1:
for model in MODELS:
solved[model] = _solve_model(model)
else:
with ProcessPoolExecutor(max_workers=workers) as pool:
futures = {
pool.submit(_solve_model, model): model for model in MODELS
}
for future in as_completed(futures):
model = futures[future]
solved[model] = future.result()
print(
f"[computed] {MODEL_DISPLAY_LABELS[MODELS.index(model)]}: "
f"IS={solved[model]['is_elapsed_s']:.2f} s, "
"SC total="
f"{solved[model]['sc_total_elapsed_s']:.2f} s"
)
state = _pack_state(solved)
CANDIDATE_PATH.parent.mkdir(parents=True, exist_ok=True)
np.savez_compressed(CANDIDATE_PATH, **state)
print(f"Saved fresh candidate: {CANDIDATE_PATH}")
return state
def validate_state(state: dict[str, np.ndarray]) -> None:
"""Reject an incompatible or unconverged stored result."""
if str(state["schema_version"].item()) != SCHEMA:
raise ValueError("Unsupported Al IS/SC state schema.")
if tuple(state["model_labels"].tolist()) != MODELS:
raise ValueError("Expected QM and TF model ordering.")
if tuple(state["structure_labels"].tolist()) != STRUCTURES:
raise ValueError("Expected IS and SC structure ordering.")
if str(state["sc_status"].item()) != "experimental":
raise ValueError("SC must remain explicitly labelled experimental.")
if not np.all(np.asarray(state["sc_converged"], dtype=bool)):
raise ValueError("An experimental SC calculation is unconverged.")
if np.any(
np.asarray(state["hnc_residual"], dtype=float)
> float(workflow_config("qm").hnc_tol)
):
raise ValueError("An HNC residual exceeds the documented tolerance.")
r = np.asarray(state["r_bohr"], dtype=float)
k = np.asarray(state["k_bohr_inv"], dtype=float)
if (
r.ndim != 1
or k.ndim != 1
or not np.all(np.diff(r) > 0.0)
or not np.all(np.diff(k) > 0.0)
):
raise ValueError("Stored r and k grids must be strictly increasing.")
if np.asarray(state["gii_r"]).shape != (2, 2, r.size):
raise ValueError("Unexpected gii_r dimensions.")
if np.asarray(state["sii_k"]).shape != (2, 2, k.size):
raise ValueError("Unexpected sii_k dimensions.")
fixed_mu = np.asarray(state["fixed_is_mu_ha"], dtype=float)
mu = np.asarray(state["mu_ha"], dtype=float)
np.testing.assert_allclose(mu[:, 0], fixed_mu, atol=2.0e-10, rtol=0.0)
np.testing.assert_allclose(mu[:, 1], fixed_mu, atol=2.0e-10, rtol=0.0)
if bool(state["tf_discrete_ks_levels_defined"]):
raise ValueError("Thomas--Fermi cannot define discrete KS levels.")
def load_reviewed_state() -> dict[str, np.ndarray]:
"""Load and checksum the accepted, project-generated Otter result."""
manifest = json.loads(MANIFEST_PATH.read_text(encoding="utf-8"))
if (
manifest.get("schema_version") != "otter_example_manifest_v1"
or manifest.get("example_id") != "al_is_sc_comparison"
or manifest.get("status") != "accepted"
):
raise ValueError("The installed Al IS/SC manifest is not accepted.")
archive_path = BASELINE_DIR / manifest["state"]["data_file"]
if _sha256(archive_path) != manifest["state"]["data_sha256"]:
raise RuntimeError("Al IS/SC baseline checksum mismatch.")
with np.load(archive_path, allow_pickle=False) as archive:
state = {key: np.asarray(archive[key]) for key in archive.files}
return state
def level_rows(
state: dict[str, np.ndarray],
structure: str,
) -> list[dict[str, float | str]]:
"""Return the finite KS levels for one structure model."""
structure_key = str(structure).strip().lower()
if structure_key not in STRUCTURES:
raise ValueError("structure must be 'is' or 'sc'.")
prefix = f"qm_{structure_key}_"
symbols = ("s", "p", "d", "f", "g", "h")
rows: list[dict[str, float | str]] = []
for l_value, n_index, energy, fd, occupation in zip(
state[prefix + "bound_l"],
state[prefix + "bound_n_index"],
state[prefix + "bound_energy_ha"],
state[prefix + "bound_fd"],
state[prefix + "bound_occ_deg_fd"],
strict=True,
):
l_int = int(l_value)
principal_n = int(n_index) + l_int
label = (
f"{principal_n}{symbols[l_int]}"
if l_int < len(symbols)
else f"n={principal_n}, l={l_int}"
)
rows.append(
{
"level": label,
"energy_ha": float(energy),
"energy_ev": HA_TO_EV * float(energy),
"fd": float(fd),
"occupation": float(occupation),
}
)
return rows
def print_summary(state: dict[str, np.ndarray]) -> None:
"""Print chemical potentials, ionisation, timings, and KS levels."""
print(
"\nAl: rho=8.1 g/cc, Te=Ti=15 eV"
"\nSC status: experimental; Starrett--Saumon (2014), "
"Sec. 2.4, Eqs. (19)--(20)."
)
print(
"\nmodel path mu [Ha] Zbar "
"HNC residual total wall time [s]"
)
print("-" * 87)
mu = np.asarray(state["mu_ha"], dtype=float)
zbar = np.asarray(state["zbar_partition"], dtype=float)
residual = np.asarray(state["hnc_residual"], dtype=float)
for model_index, model_name in enumerate(
state["model_display_labels"].tolist()
):
values = (
(
"IS",
float(state["is_elapsed_s"][model_index]),
),
(
"SC",
float(state["sc_total_elapsed_s"][model_index]),
),
)
for structure_index, (path_name, elapsed) in enumerate(values):
print(
f"{model_name:<17s} {path_name:<5s} "
f"{mu[model_index, structure_index]:12.8f} "
f"{zbar[model_index, structure_index]:10.6f} "
f"{residual[model_index, structure_index]:14.3e} "
f"{elapsed:15.2f}"
)
print("SC total = initial IS calculation + SC feedback stage.")
is_levels = {row["level"]: row for row in level_rows(state, "is")}
sc_levels = {row["level"]: row for row in level_rows(state, "sc")}
labels = list(dict.fromkeys([*is_levels, *sc_levels]))
print(
"\nKS-DFT finite bound levels"
"\nlevel E_IS [Ha] E_SC [Ha] FD_IS FD_SC"
)
print("-" * 57)
for label in labels:
is_row = is_levels.get(label)
sc_row = sc_levels.get(label)
print(
f"{label:<6s} "
f"{float(is_row['energy_ha']) if is_row else np.nan:11.6f} "
f"{float(sc_row['energy_ha']) if sc_row else np.nan:11.6f} "
f"{float(is_row['fd']) if is_row else np.nan:10.6f} "
f"{float(sc_row['fd']) if sc_row else np.nan:10.6f}"
)
print(
"Thomas--Fermi is a semiclassical density model and has no "
"discrete KS-level table.\n"
)
def main() -> None:
state = (
recompute_state() if RECOMPUTE_WITH_OTTER else load_reviewed_state()
)
validate_state(state)
print(
"Using a fresh Otter calculation."
if RECOMPUTE_WITH_OTTER
else "Using the reviewed, checksummed Otter calculation."
)
print_summary(state)
# %%
# Ion structure
# -------------
# Solid lines are IS; dashed lines are the experimental SC extension. Rows
# distinguish KS-DFT from TF electrons.
r = np.asarray(state["r_bohr"], dtype=float)
k = np.asarray(state["k_bohr_inv"], dtype=float)
gii = np.asarray(state["gii_r"], dtype=float)
sii = np.asarray(state["sii_k"], dtype=float)
model_names = tuple(state["model_display_labels"].tolist())
structure_names = ("IS", "SC (experimental)")
structure_styles = (
dict(MODEL_STYLES["is"]),
dict(MODEL_STYLES["sc"]),
)
r_mask = r <= 10.0
k_mask = k <= 6.0
with style_context("thesis", palette="bing"):
fig_structure, axes = plt.subplots(
2,
2,
figsize=grid_figsize(2, 2),
sharex="col",
)
for model_index, model_name in enumerate(model_names):
for structure_index, structure_name in enumerate(structure_names):
style = structure_styles[structure_index]
axes[model_index, 0].plot(
r[r_mask],
gii[model_index, structure_index, r_mask],
label=structure_name,
**style,
)
axes[model_index, 1].plot(
k[k_mask],
sii[model_index, structure_index, k_mask],
label=structure_name,
**style,
)
axes[model_index, 0].set_ylabel(
model_name + "\n" + r"$g_{ii}(r)$"
)
axes[model_index, 1].set_ylabel(r"$S_{ii}(k)$")
axes[model_index, 0].axhline(
1.0, color="0.55", ls=":", lw=0.9
)
axes[model_index, 1].axhline(
1.0, color="0.55", ls=":", lw=0.9
)
axes[model_index, 0].set_xlim(-0.5, 10.0)
axes[model_index, 1].set_xlim(0.0, 6.0)
for axis in axes[model_index]:
axis.legend()
axes[0, 0].set_title("Pair distribution")
axes[0, 1].set_title("Static structure factor")
axes[-1, 0].set_xlabel(r"$r$ [Bohr]")
axes[-1, 1].set_xlabel(r"$k$ [Bohr$^{-1}$]")
fig_structure.suptitle(
r"Al: $\rho=8.1$ g cm$^{-3}$, $T_e=T_i=15$ eV",
y=0.985,
)
fig_structure.tight_layout(rect=(0.0, 0.0, 1.0, 0.95))
save_figure(
fig_structure,
FIGURE_DIR / "al_is_sc_ionic_structure",
close=False,
)
# %%
# KS-DFT level shifts
# -------------------
# The deep 1s level and valence levels use separate linear axes so that the
# SC-induced changes remain visible. Fermi--Dirac occupations are printed in
# the terminal table above. TF has no discrete KS eigenvalue spectrum.
is_level_map = {row["level"]: row for row in level_rows(state, "is")}
sc_level_map = {row["level"]: row for row in level_rows(state, "sc")}
all_level_names = list(dict.fromkeys([*is_level_map, *sc_level_map]))
deep_levels = [name for name in all_level_names if name == "1s"]
valence_levels = [name for name in all_level_names if name != "1s"]
def _draw_level_paths(
axis: Any,
labels: list[str],
*,
title: str,
) -> None:
for color, label in zip(PALETTES["bing"][1:], labels, strict=False):
is_row = is_level_map.get(label)
sc_row = sc_level_map.get(label)
values = [
np.nan if is_row is None else float(is_row["energy_ev"]),
np.nan if sc_row is None else float(sc_row["energy_ev"]),
]
axis.plot(
(0.0, 1.0),
values,
color=color,
marker="o",
ms=6.0,
label=label,
)
axis.set(
xticks=(0.0, 1.0),
xticklabels=("IS", "SC"),
ylabel="KS energy [eV]",
title=title,
)
axis.set_xlim(-0.25, 1.25)
axis.legend()
with style_context("thesis", palette="bing"):
fig_levels, level_axes = plt.subplots(
1,
2,
figsize=grid_figsize(1, 2),
)
_draw_level_paths(
level_axes[0],
deep_levels,
title="Deep level",
)
_draw_level_paths(
level_axes[1],
valence_levels,
title="Valence levels",
)
fig_levels.suptitle(
"KS-DFT bound levels under IS and experimental SC feedback",
y=0.985,
)
fig_levels.tight_layout(rect=(0.0, 0.0, 1.0, 0.94))
save_figure(
fig_levels,
FIGURE_DIR / "al_is_sc_bound_levels",
close=False,
)
# %%
# Runtime and SC convergence
# --------------------------
# Both paths show total wall time; SC includes the initial IS calculation.
# Timings are machine dependent. A valid SC result must meet
# both the :math:`g_{ii}` and correlation-potential change tolerances.
is_time = np.asarray(state["is_elapsed_s"], dtype=float)
sc_total_time = np.asarray(state["sc_total_elapsed_s"], dtype=float)
x = np.arange(len(model_names), dtype=float)
width = 0.34
with style_context("thesis", palette="bing"):
fig_convergence, (ax_time, ax_history) = plt.subplots(
1,
2,
figsize=grid_figsize(1, 2),
)
for offset, values, label, color in (
(-0.5 * width, is_time, "IS", PALETTES["bing"][1]),
(
0.5 * width,
sc_total_time,
"SC",
PALETTES["bing"][2],
),
):
bars = ax_time.bar(
x + offset,
values,
width,
label=label,
color=color,
)
ax_time.bar_label(bars, fmt="%.2f s", padding=2, fontsize=9)
ax_time.set(
xticks=x,
xticklabels=model_names,
ylabel="total wall time [s]",
title="Recorded total wall time",
)
ax_time.set_ylim(
0.0,
1.18 * float(max(np.max(is_time), np.max(sc_total_time))),
)
ax_time.legend()
for model, model_name, color in zip(
MODELS,
model_names,
PALETTES["bing"][1:3],
strict=True,
):
iteration = np.asarray(
state[f"{model}_sc_history_iteration"], dtype=int
)
dg = np.asarray(
state[f"{model}_sc_history_max_g_change"], dtype=float
)
dv = np.asarray(
state[f"{model}_sc_history_max_v_corr_residual_ha"],
dtype=float,
)
ax_history.semilogy(
iteration,
dg,
color=color,
marker="o",
ms=4.5,
label=model_name + r" $\max|\Delta g|$",
)
ax_history.semilogy(
iteration,
dv,
color=color,
ls="--",
marker="s",
ms=4.0,
label=model_name + r" $\max|V^C_{\rm out}-V^C_{\rm in}|$ [Ha]",
)
ax_history.axhline(
SC_CONTROLS.g_tol,
color="0.45",
ls=":",
lw=1.0,
label="tolerance",
)
ax_history.set(
xlabel="SC outer iteration",
ylabel="maximum change",
title="Experimental SC convergence",
)
ax_history.legend(fontsize=8.5)
fig_convergence.suptitle(
r"Al: $\rho=8.1$ g cm$^{-3}$, $T_e=T_i=15$ eV",
y=0.985,
)
fig_convergence.tight_layout(rect=(0.0, 0.0, 1.0, 0.94))
save_figure(
fig_convergence,
FIGURE_DIR / "al_is_sc_timing_convergence",
close=False,
)
plt.show()
if __name__ == "__main__":
main()
